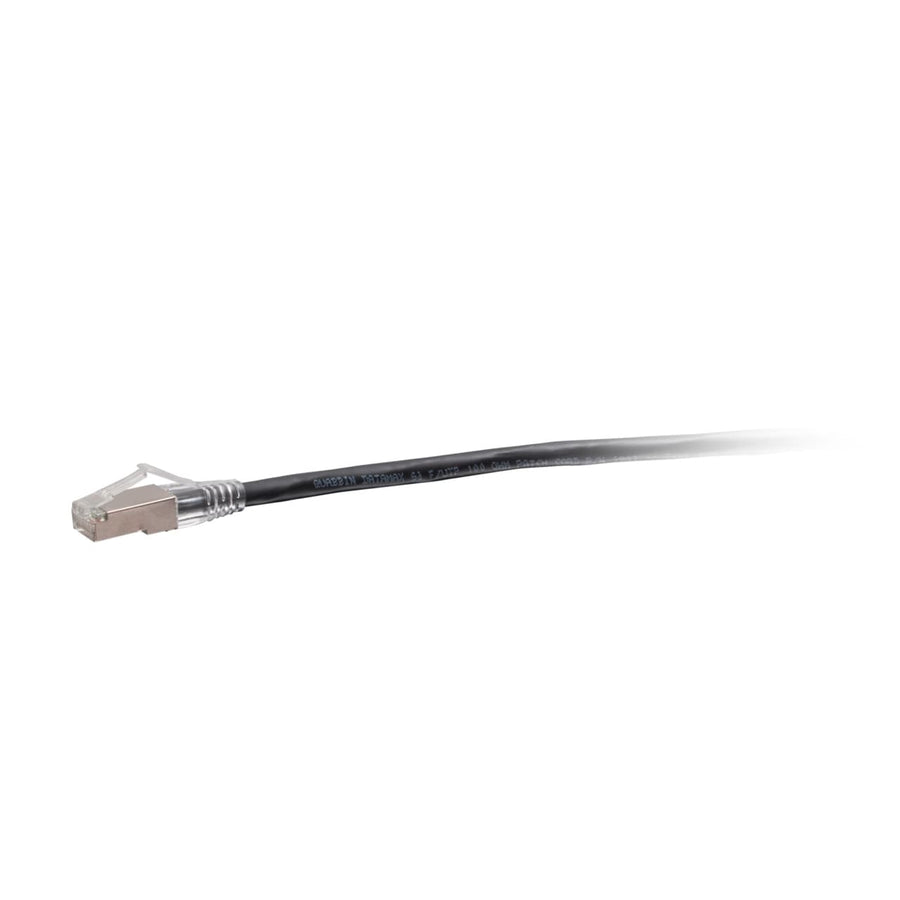

7ft (2.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Black
7ft TAA-compliant Cat6a STP snagless shielded network cable, black finish, suitable for 10GBase-T equipment
The C2G43840 is a 7 ft (2.1 m) TAA-compliant Cat6a snagless shielded (STP) network cable designed for high-performance 10GBase-T environments. This passive, black cable utilizes 26 AWG stranded copper conductors and is constructed with high-quality, made in the USA raw cable for reliable, consistent performance. It features a shielded STP construction to protect high-speed 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. The cable uses 50-micron gold-plated RJ-45 male contacts to improve signal integrity and is designed with snagless connectors to prevent the clips from breaking during frequent insertion cycles. This CMR-rated riser cable is jacketed in PVC and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is rated for use in operating temperatures ranging from -4° - 167°F (-20° - 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438403 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
17 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP1705NAV1$69.99
14 Inch Enclosure with Screw-On Cover
EN1400$59.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
Questions about this part
Is the C2G43840 TAA compliant?
Yes, this cable meets TAA compliant requirements, making it approved for use in United States government projects and facilities.
What kind of shielding does this Cat6a cable provide?
The C2G43840 features Shielded STP (STP shielding) with an aluminum foil shield to counter EMI, RFI, and alien crosstalk for 10 Gigabit connections.
What is the maximum operating temperature for this cable?
This cable is rated for operating temperatures between -4° - 167°F (-20° - 75°C).
Will this cable work for 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed for bandwidth-intensive applications, including 10GBASE-T (10 Gigabit Ethernet) ports on hubs, switches, and routers.
What is the wiring scheme for the C2G43840?
This cable uses the T568B wiring scheme and features 26 AWG stranded copper conductors.
