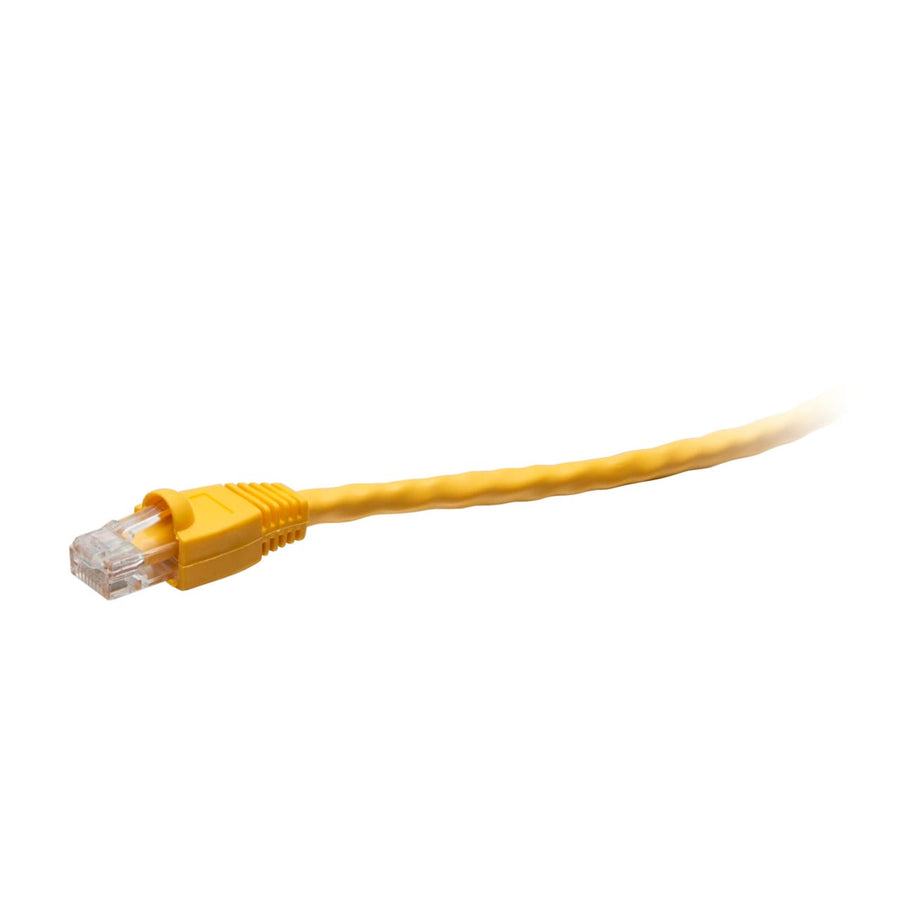

7ft (2.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Yellow
7ft TAA-compliant Cat6 UTP network cable in yellow with snagless RJ45 connectors and CMR rated jacket
The C2G43513 is a 7ft (2.1 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable in yellow. Specifically engineered for use in United States government projects and facilities, this cable meets the stringent requirements for TAA compliance. It utilizes high-quality, made-in-the-USA raw copper cabling that supports 1000BASE-T (1 Gigabit Ethernet) applications. The cable features a stranded copper conductor and 50-micron gold-plated contacts to maintain signal integrity. For easier installation in high-density environments, the molded snagless boot protects the RJ45 clips from snapping during insertion and provides additional strain relief. This CMR-rated cable is constructed with a PVC jacket and is suitable for riser applications. The wiring follows the T568B scheme, ensuring compatibility with a wide range of network infrastructure including hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435136 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
17 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP1705NAV1$69.99
14 Inch Enclosure with Screw-On Cover
EN1400$59.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43513 TAA compliant?
Yes, this is a TAA-compliant F-Series cable approved for United States government projects and facilities.
What is the maximum frequency of this Cat6 cable?
This cable provides an enhanced 600 MHz maximum frequency for reliable performance in 1000BASE-T applications.
Can I use this cable in a riser installation?
Yes, this cable has a CMR rated PVC jacket designed for riser applications.
Does this cable require specific shielding for my network?
This is an unshielded UTP (Unshielded Twisted Pair) cable using 24 AWG stranded copper conductors.
What is the warranty for the C2G43513?
This product is covered by a lifetime warranty.
