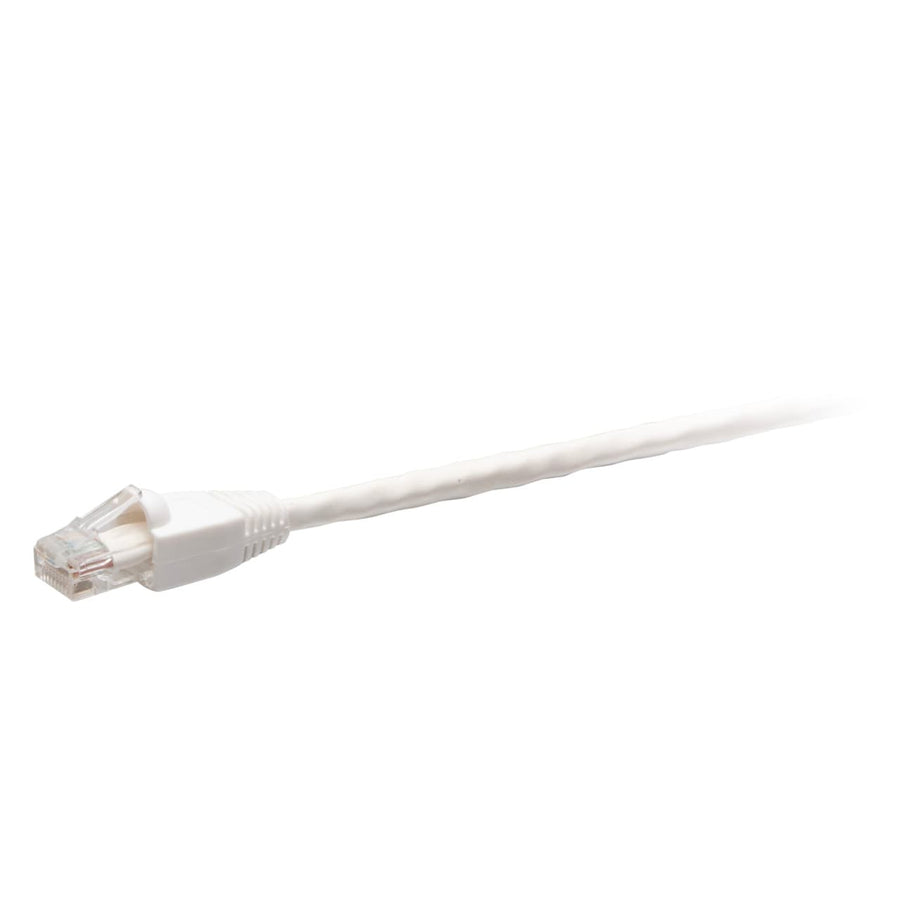

7ft (2.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - White
7ft TAA-compliant Cat6 Snagless UTP network cable, white, 24 AWG stranded copper, CMR rated
The C2G43576 is a 7 ft (2.1 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable in white. This passive cable is constructed with high-quality, made in the USA raw copper stranded conductors, providing an enhanced 600 MHz maximum frequency for consistent performance. It is designed for use with network adapters, hubs, switches, routers, and servers to support applications including 1000BASE-T (1 Gigabit Ethernet). The cable features a snagless RJ-45 male to RJ-45 male connector design with molded boots to protect the clips from breaking and provide extra strain relief during high insertion cycle applications. This CMR rated cable features a PVC jacket suitable for riser applications. It is built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. With 50-micron gold-plated contacts to improve signal integrity, this cable is an appropriate choice for United States government projects and facilities requiring TAA compliance. It operates within a temperature range of -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435761 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43576 TAA compliant?
Yes, this cable is TAA compliant and meets requirements for United States government projects and facilities.
What is the maximum frequency supported by this Cat6 cable?
This cable features enhanced 600 MHz maximum frequency for increased performance over standard Cat6 cables.
What is the jacket rating for this white network cable?
This cable has a CMR rated PVC jacket suitable for riser applications.
What hardware is compatible with this C2G cable?
This cable is designed for use with network adapters, hubs, switches, routers, and servers.
What is the warranty for the C2G43576?
This product is covered by a lifetime warranty.
