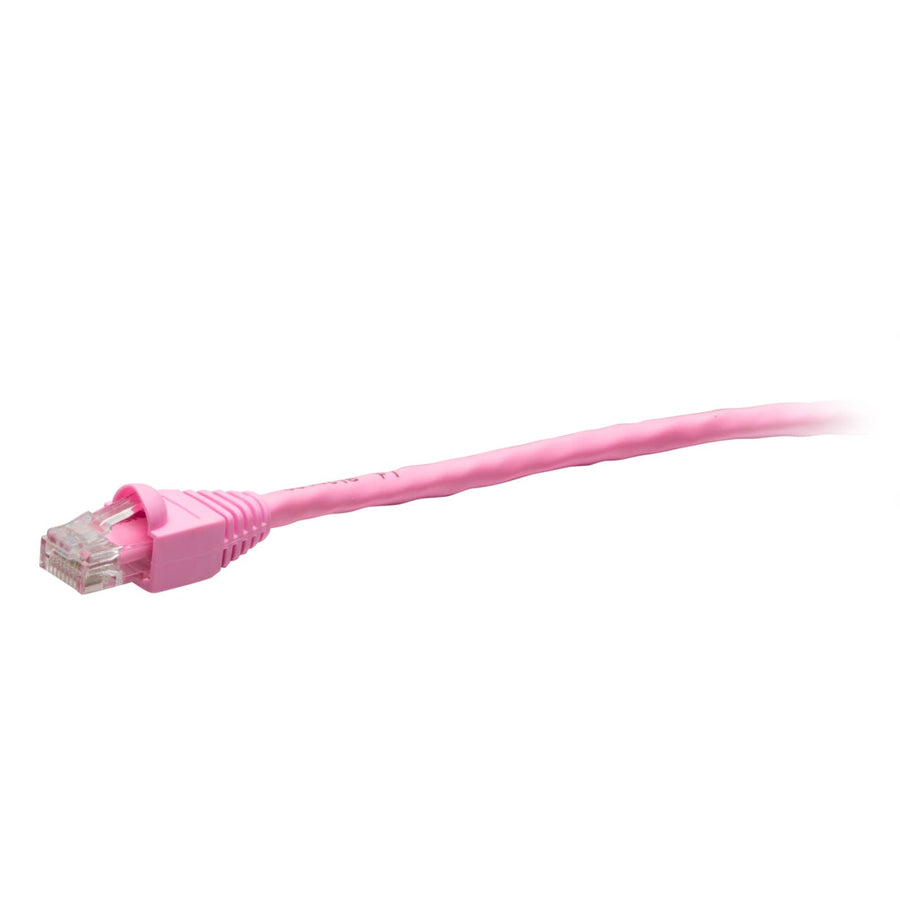

7ft (2.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
7ft Pink Cat6 UTP snagless network cable, TAA-compliant and CMR rated for government-approved installations
The C2G43597 is a 7 ft (2.1 m) TAA-compliant F-Series Cat6 Unshielded (UTP) network cable in pink, specifically designed to meet the rigorous requirements of United States government projects and facilities. This passive, stranded copper cable utilizes 24 AWG conductors to support high-performance applications, including 1000BASE-T 1 Gigabit Ethernet. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards and features an enhanced 600 MHz maximum frequency. The cable is CMR rated with a PVC jacket, making it suitable for riser applications. For ease of installation and maintenance, the snagless RJ-45 male connectors feature molded boots that prevent clip breakage and provide strain relief during high-cycle insertion. The 50-micron gold-plated contacts ensure consistent signal integrity. This pink cable is part of a broader series available in various lengths up to 100ft and multiple colors for organized color-coding in complex network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435976 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43597 TAA compliant?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
What is the maximum frequency for this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency, supporting performance levels above standard Cat6 requirements.
Can I use this cable in a riser application?
Yes, this cable has a CMR jacket rating, which is suitable for riser applications.
What type of shielding does this network cable have?
The C2G43597 is an Unshielded Twisted Pair (UTP) cable.
Does this cable support 1 Gigabit Ethernet?
Yes, it meets ANSI/TIA-568.2-D standards to support applications including 1000BASE-T (1 Gigabit Ethernet).
