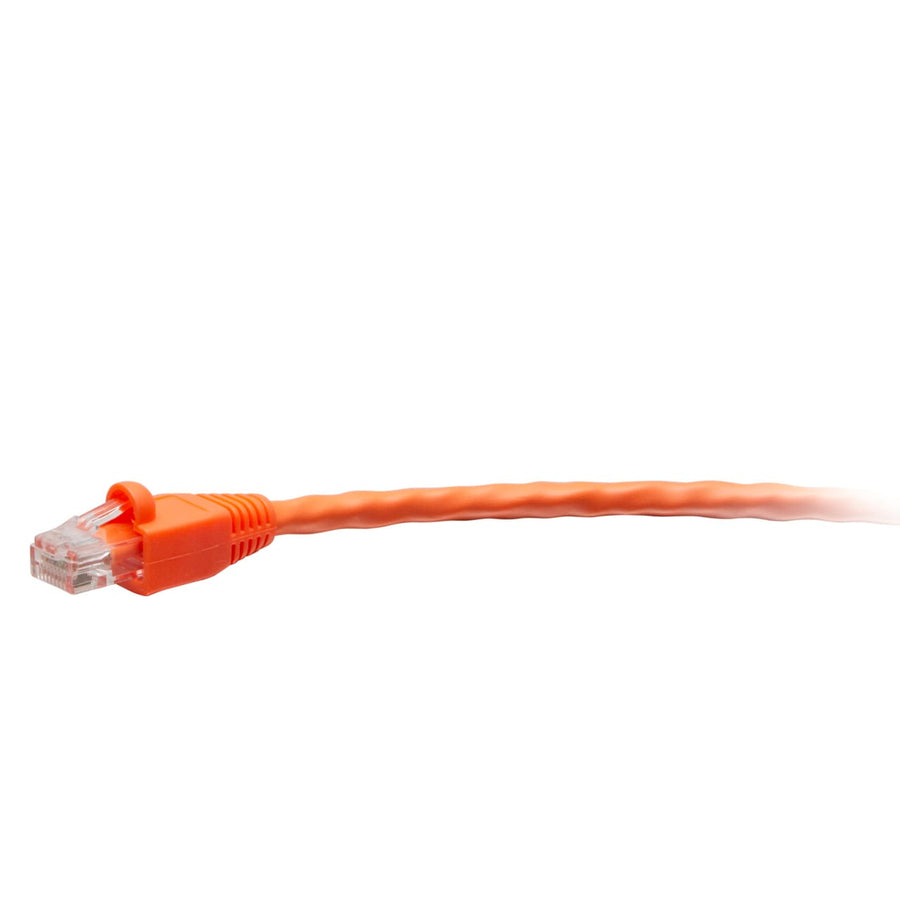

7ft (2.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Orange
7ft TAA-compliant Cat6 UTP snagless network cable in orange with 24 AWG stranded copper conductors
The C2G43534 is a 7 ft (2.1 m) TAA-compliant Cat6 Unshielded Twisted Pair (UTP) network cable in orange. This F-Series cable is specifically constructed for use in United States government projects and facilities that require TAA compliance. It features 24 AWG stranded copper conductors and 50-micron gold-plated contacts to maintain signal integrity for 1000BASE-T 1 Gigabit Ethernet applications. The cable is CMR rated for riser applications and features a PVC jacket with a 0.22 in (5.6 mm) diameter. To protect the RJ-45 male connectors during installation and high-frequency insertion cycles, the cable utilizes a molded snagless boot that provides strain relief and prevents the clips from snapping. This passive cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, offering an enhanced 600 MHz maximum frequency for reliable performance in hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435341 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43534 TAA compliant for government contracts?
Yes, this cable meets TAA-compliant requirements and is approved for use in United States government projects and facilities.
What is the maximum frequency for this Cat6 cable?
This cable is designed with an enhanced 600 MHz maximum frequency to support 1000BASE-T 1 Gigabit Ethernet applications.
What is the jacket rating for this orange cable?
The C2G43534 is a CMR rated cable, making it suitable for riser jacket applications.
Can I use this for high-density patch panels?
Yes, it is compatible with hardware such as the CG37199 24-Port Cat6 110-Type Patch Panel or the CG37200 48-Port Cat6 110-Type Patch Panel.
Does this cable include protection for the connector clips?
Yes, the molded snagless boot provides extra strain relief and protects the RJ-45 clips from being snapped off during installation.
