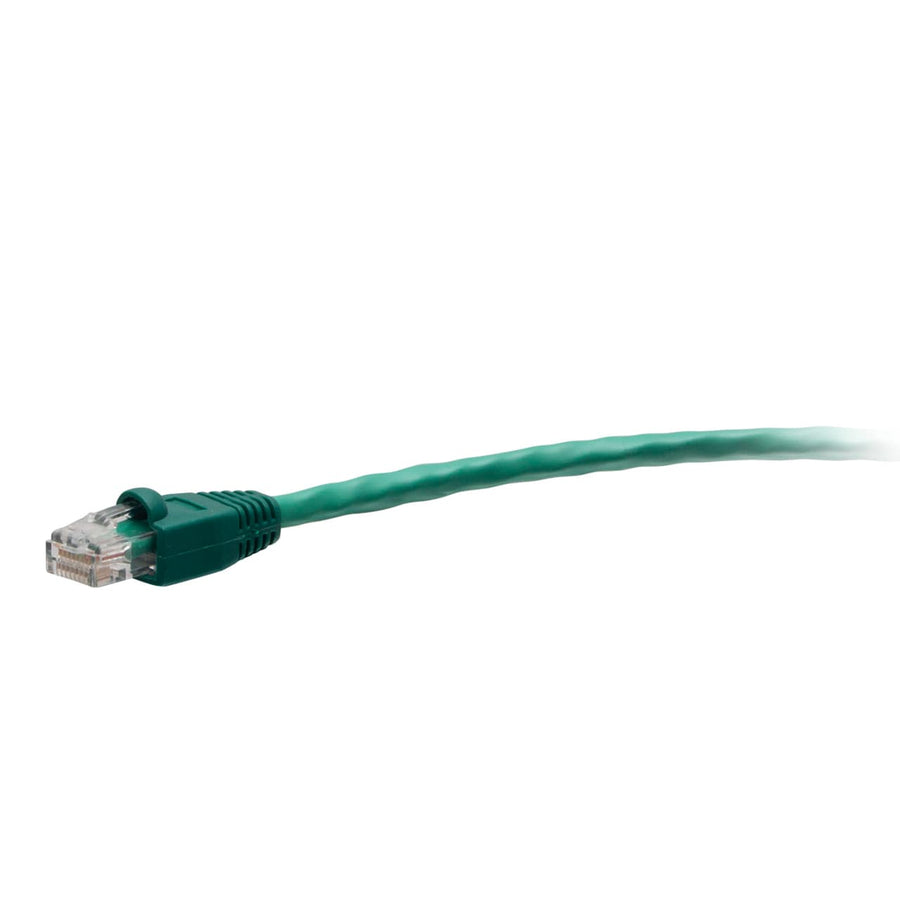

7ft (2.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Green
7ft TAA-compliant Cat6 snagless UTP network cable in green with 50-micron gold-plated contacts
The C2G43492 is a 7ft (2.1 m) TAA-compliant F-Series Cat6 snagless unshielded (UTP) network cable in green. Built for use in United States government projects and facilities, this cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. It is designed to support applications including 1000BASE-T (1 Gigabit Ethernet) for use with network adapters, hubs, switches, routers, and servers. This cable features high-quality, made in the USA copper cabling with a 24 AWG wire gauge and a maximum frequency of 600 MHz to provide increased performance over standard Cat6 alternatives. The snagless RJ-45 male connectors include a molded boot to protect the clips from snapping during installation and provide extra strain relief. Each connector is equipped with 50-micron gold-plated contacts to maintain signal integrity. This CMR-rated cable uses a PVC jacket and is suitable for riser applications. The wiring scheme follows the T568B standard.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434924 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43492 TAA compliant?
Yes, this F-Series Cat6 cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum frequency of this Cat6 cable?
This cable is constructed with high-quality copper to support a maximum frequency of 600 MHz.
Does this cable support Gigabit Ethernet?
Yes, it meets or exceeds ANSI/TIA-568.2-D standards to support 1000BASE-T (1 Gigabit Ethernet) applications.
What type of jacket rating does this cable have?
This is a CMR rated cable with a PVC jacket suitable for riser applications.
What is the wiring scheme for the C2G43492?
This network cable uses a T568B wiring scheme and features unshielded UTP construction.
