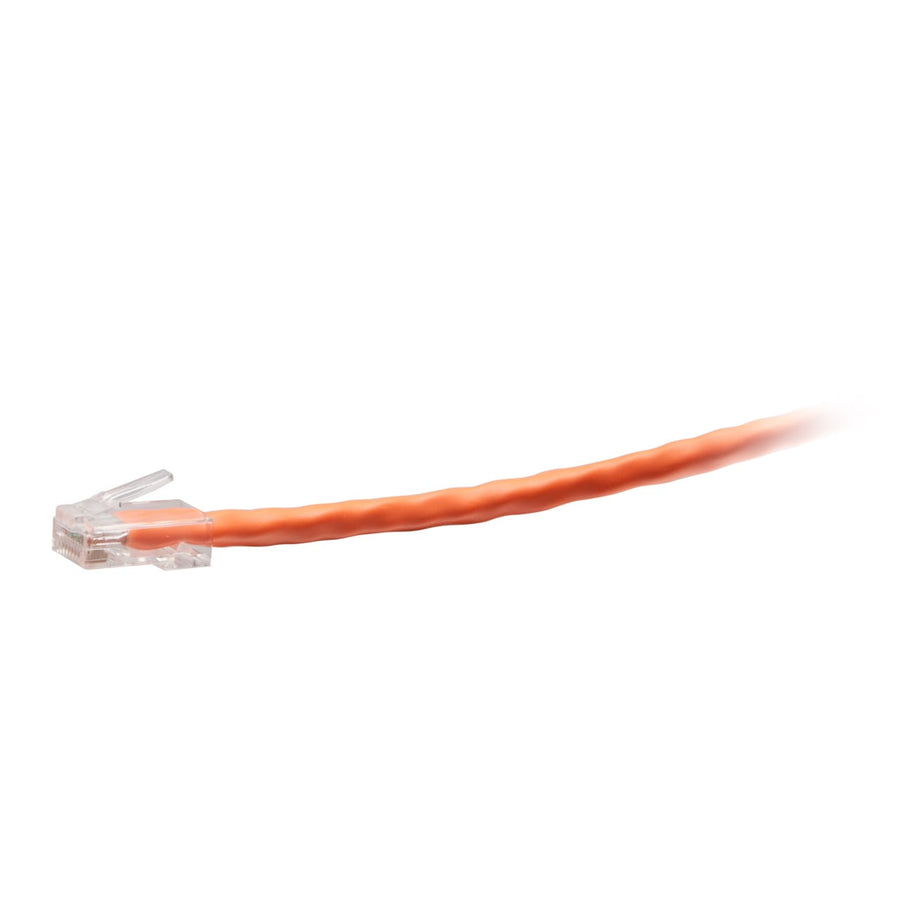

7ft (2.1m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Orange
7ft Orange Cat6 UTP unshielded network cable, TAA-compliant, non-booted with RJ-45 male connectors
The C2G43666 is a 7 ft (2.1 m) TAA-Compliant F-Series Cat6 non-booted unshielded (UTP) network cable in orange. Designed to meet stringent TAA requirements, this cable is approved for use in United States government projects and facilities. It features high-quality, made in the USA copper cabling that provides an enhanced 600 MHz maximum frequency, ensuring increased performance over standard Cat6 alternatives for 1000BASE-T (1 Gigabit Ethernet) applications. This passive cable is constructed with stranded copper conductors and 24 AWG wire gauge. The RJ-45 male connectors utilize 50-micron gold-plated contacts to improve signal integrity. This CMR rated riser cable is housed in a PVC jacket and is suitable for use with network adapters, hubs, switches, routers, and servers. The wiring follows the T568B scheme and is designed for reliable, consistent performance in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436669 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43666 TAA compliant?
Yes, this Cat6 cable is TAA-compliant and is approved for use in United States government projects and facilities.
What is the maximum frequency for this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency to provide better performance than standard Cat6 cables.
What type of jacket rating does this cable have?
This is a CMR rated riser cable with a PVC jacket material, suitable for various network installations.
Can I use this cable for 1 Gigabit Ethernet?
Yes, it meets or exceeds ANSI/TIA-568.2-D standards for supporting applications including 1000BASE-T (1 Gigabit Ethernet).
What is the connector type on this orange cable?
The C2G43666 features two RJ-45 male connectors with 50-micron gold-plated contacts.
