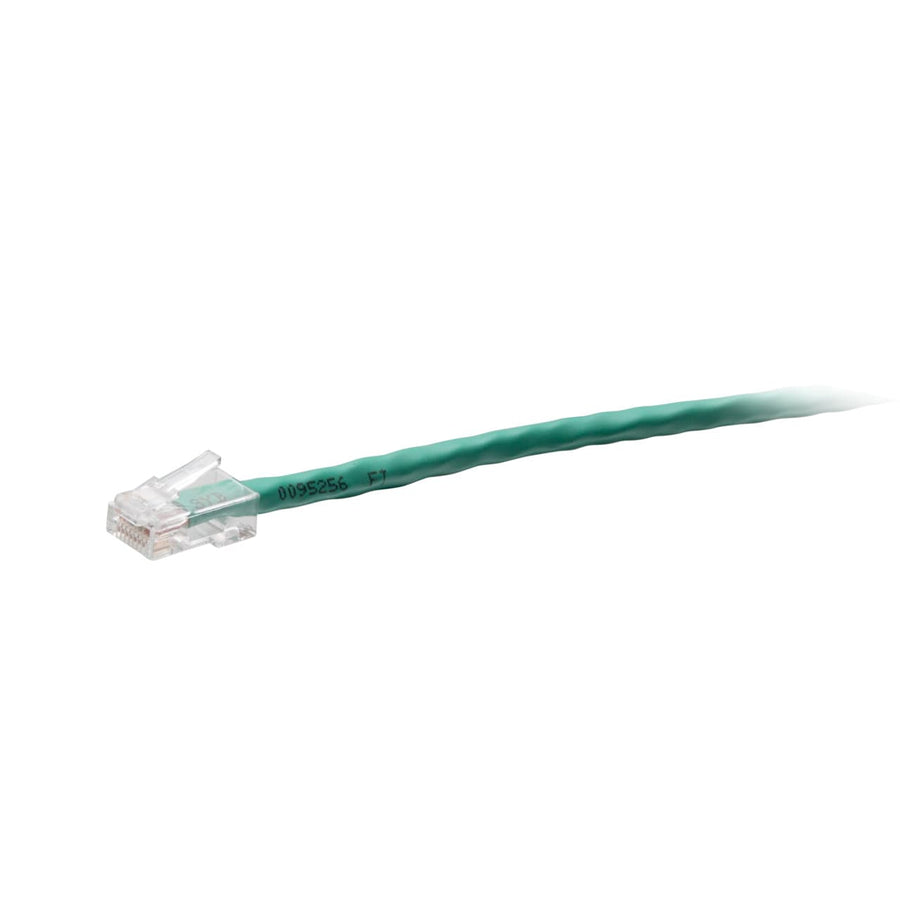

7ft (2.1m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Green
7ft Green Cat6 UTP network cable, TAA-compliant, 24 AWG stranded copper, CMR rated for riser applications
The C2G43642 is a 7 ft (2.1 m) TAA-compliant Cat6 unshielded (UTP) network cable designed for high-performance connectivity in professional environments. This non-booted cable is manufactured with high-quality, made in the USA raw copper cabling, providing a 600 MHz maximum frequency that exceeds standard Cat6 performance. It features 24 AWG stranded copper conductors and 50-micron gold-plated contacts to ensure signal integrity across switches, routers, servers, and hubs. This cable is CMR rated for riser jacket applications and is constructed with a PVC jacket material. It follows the T568B wiring scheme and is fully compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. This green-colored cable is an ideal choice for color-coding network installations where TAA compliance is required for government-approved projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436423 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43642 TAA compliant?
Yes, this Cat6 cable meets TAA-compliant requirements and is approved for use in United States government facilities and projects.
What is the maximum frequency of this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency, providing increased performance over standard Cat6 cables.
Can this cable be used in riser installations?
Yes, this cable features a CMR rated jacket designed for riser applications.
What type of construction does this network cable use?
The C2G43642 is a non-booted, unshielded (UTP) cable utilizing 24 AWG stranded copper conductors.
What is the wiring scheme for this patch cable?
This cable is configured with a T568B wiring scheme and features RJ-45 male connectors.
