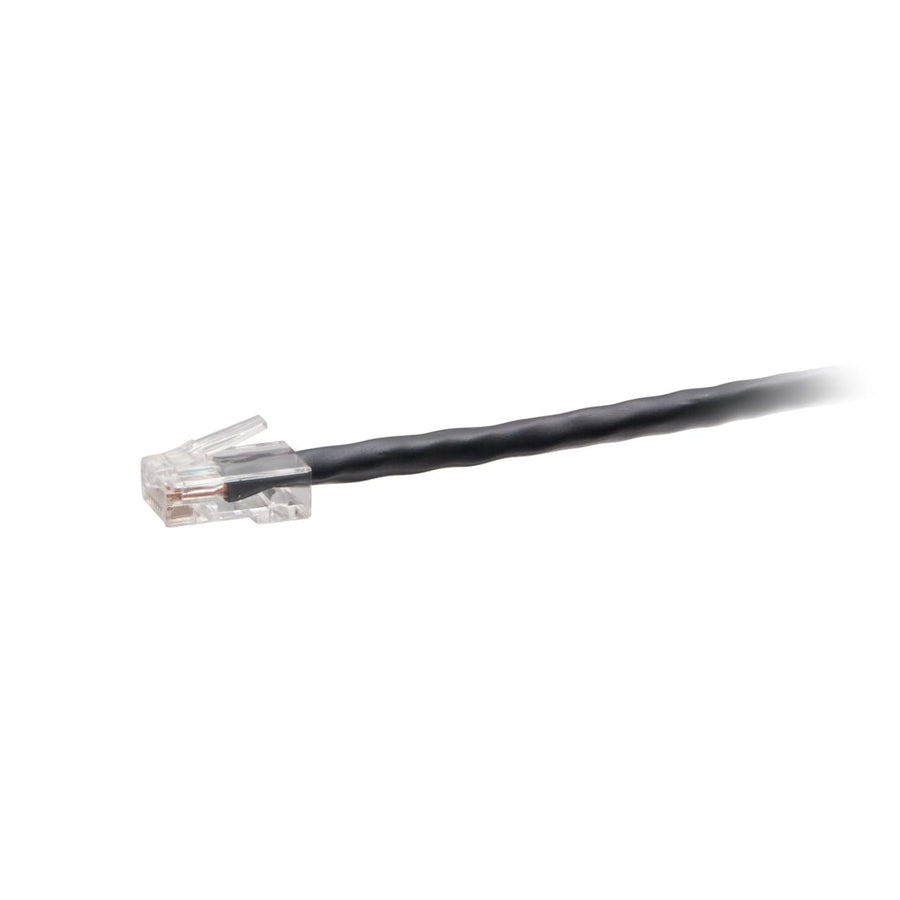

7ft (2.1m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Black
7ft (2.1m) TAA-compliant Cat6 UTP network cable with 24 AWG stranded copper and 50-micron gold-plated contacts
The C2G43630 is a 7 ft (2.1 m) TAA-compliant Cat6 unshielded (UTP) network cable designed to meet the stringent requirements of United States government projects and facilities. This non-booted cable is constructed with high-quality, made in the USA raw copper cabling, offering an enhanced 600 MHz maximum frequency to provide more consistent and reliable performance than standard Cat6 cables. It is fully compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, making it suitable for 1000BASE-T (1 Gigabit Ethernet) applications. The cable features 24 AWG stranded copper conductors and 50-micron gold-plated contacts on both RJ-45 male connectors to improve signal integrity. The black PVC jacket is CMR rated for riser applications and is suitable for use in environments ranging from -4°F to 167°F (-20°C to 75°C). This passive cable is ideal for connecting network adapters, hubs, switches, routers, and servers in professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436300 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43630 TAA compliant?
Yes, this cable is TAA-compliant and is approved for use in United States government projects and facilities.
What is the maximum frequency for this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency, providing higher performance than standard Cat6 cabling.
What kind of RJ-45 connectors does this cable use?
The C2G43630 features two standard RJ-45 male connectors with 50-micron gold-plated contacts to maintain signal integrity.
Can this cable be used in riser applications?
Yes, the PVC jacket is CMR rated for riser applications and is suitable for operating temperatures between -4°F and 167°F.
What is the conductor material and gauge for the C2G43630?
It is constructed with 24 AWG stranded copper conductors for reliable networking performance.
