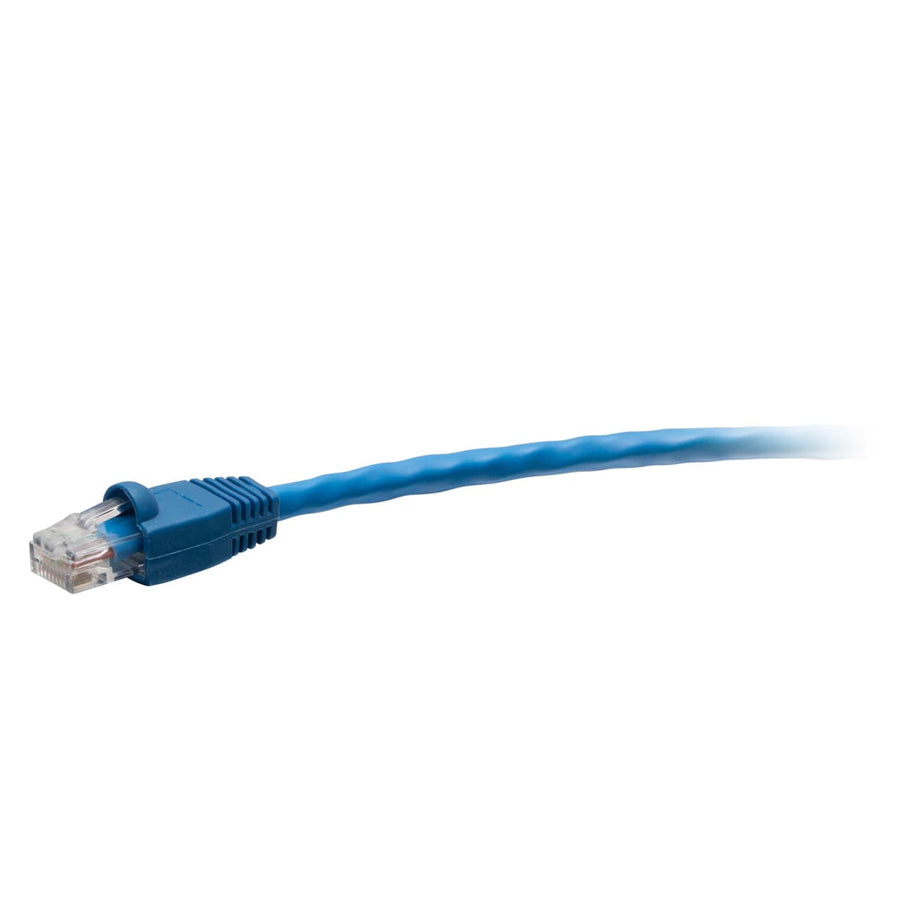

7ft (2.1m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable - Blue
7ft (2.1m) TAA-compliant Cat5e Snagless UTP network cable in Blue, featuring copper conductors and 50-micron gold-plated contacts
The C2G43414 is a 7ft (2.1m) TAA-compliant Cat5e Snagless Unshielded (UTP) network cable in Blue, engineered to meet the rigorous requirements of United States government projects and facilities. This passive, unshielded twisted pair (UTP) cable is constructed with high-quality, made in the USA copper stranded conductors, providing a maximum frequency of 350 MHz for improved performance over standard Cat5e cables. Designed for reliable connectivity in environments with high insertion cycles, the snagless RJ45 male connectors feature a molded boot to protect the clips from snapping and to provide additional strain relief. The cable utilizes 50-micron gold-plated contacts to maintain signal integrity and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. This CMR rated riser application cable is suitable for 1000BASE-T (1 Gigabit Ethernet) applications involving network adapters, hubs, switches, and routers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434146 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
20 Inch Enclosure with Hinged Door
EN2050$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
42 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP4250NA$189.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43414 TAA compliant?
Yes, this C2G43414 cable is TAA compliant and is approved for use in United States government projects and facilities.
What is the maximum frequency and speed for this Cat5e cable?
This cable features an enhanced 350 MHz maximum frequency and is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
What is the jacket rating for this network cable?
The C2G43414 features a PVC jacket with a CMR (Riser) rating, making it suitable for riser applications.
What type of connector and shielding does this cable use?
It uses two RJ-45 male connectors with an unshielded UTP (Unshielded Twisted Pair) design and snagless boots.
What is the warranty for the C2G43414?
This C2G network cable is backed by a lifetime warranty.
