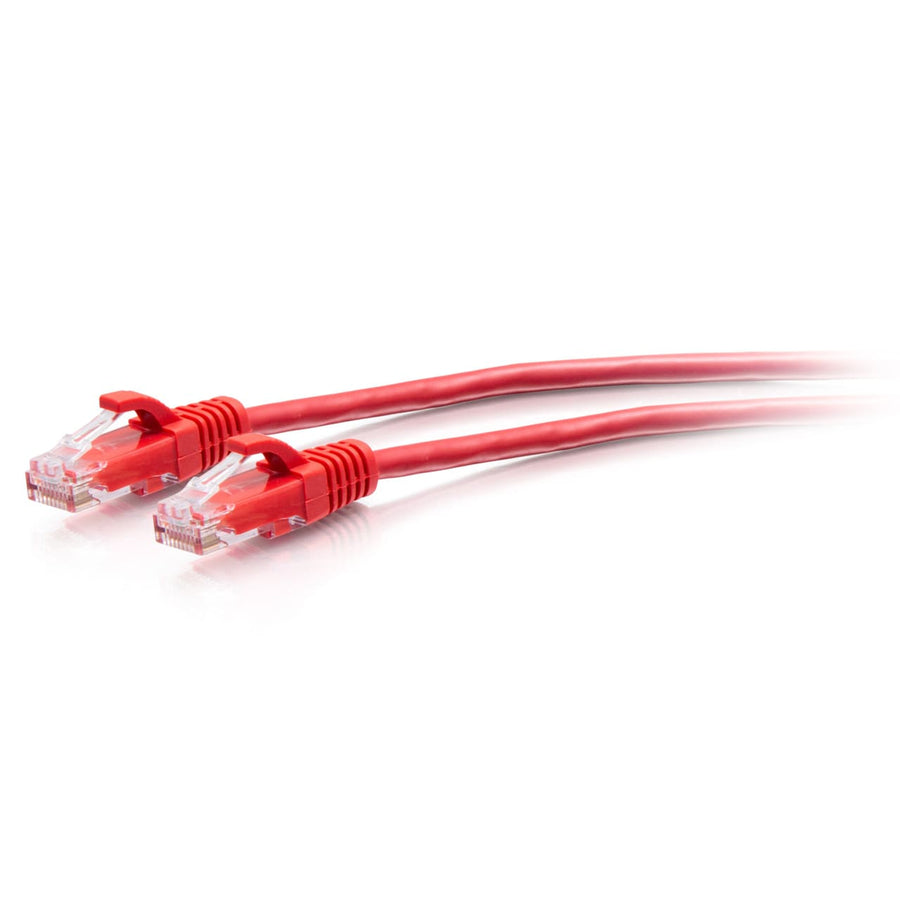

7ft (2.1m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Red
7ft red Cat6a slim patch cable, 28AWG UTP construction, snagless boots for high-density environments
The C2G30163 is a 7 ft (2.1 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in red, engineered specifically for high-density cabling environments. Designed to accommodate the space constraints of large conference rooms and data centers, this cable utilizes 28AWG stranded copper conductors. This slim construction provides a reduced cable diameter of 0.19 in (4.8 mm) ± 0.15 in (0.01 mm), which increases airflow in crowded racks compared to standard Cat6 cabling. Each end features an RJ-45 Male connector with gold-plated contacts and a PVC snagless boot to protect the termination and provide strain relief during installation. This Cat6a cable supports data transfer rates up to 10 GBPS and is suitable for applications requiring high bandwidth, such as HDBaseT or Power over Ethernet (PoE) and VoIP deployments. The snagless design helps prevent accidental disconnection when navigating tight spaces. This product is backed by a lifetime warranty and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301639 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
42 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP4250NA$189.99
Cable Management Strap - 12 Piece
TW12$25.20
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
Will the C2G30163 work for PoE or VoIP applications?
Yes, the Cat6a technology used in this 28AWG cable is suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) environments.
What is the difference between this slim cable and standard Cat6?
This slim Cat6a cable features a 0.19 in (4.8 mm) diameter and 28AWG conductors, which offers a smaller surface area for better airflow in tight spaces compared to standard Cat6 cables.
Is this cable suitable for high-density data center environments?
Yes, the slim profile and snagless boots are designed to facilitate installation in high-density applications like large conference rooms and data centers.
Does this cable support 10Gbps speeds?
Yes, this Cat6a patch cable is rated for data transfer rates up to 10 GBPS.
What certifications does this cable meet?
This cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements and is RoHS and REACH compliant.
