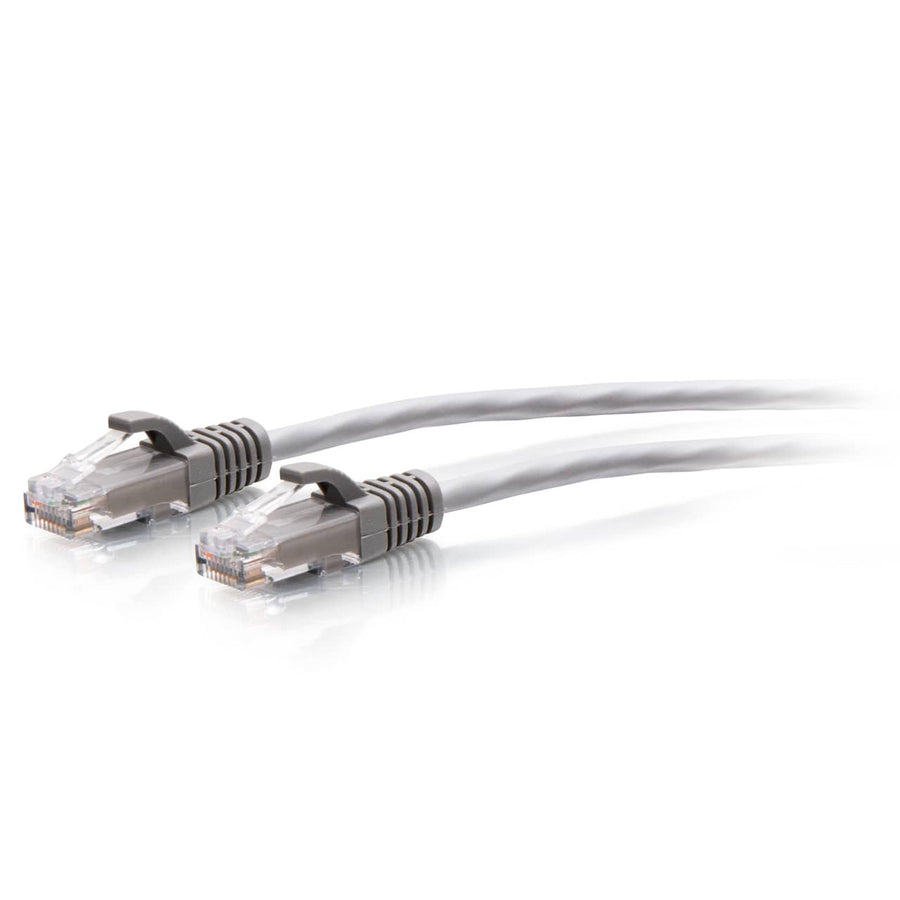

7ft (2.1m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Gray
7ft (2.1m) slim Cat6a UTP patch cable, 28AWG construction, with snagless boots for high-density environments
The C2G30117 is a 7 ft (2.1 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed specifically for high-density cabling environments like datacenters and large conference rooms. Utilizing 28AWG stranded copper conductors, this cable features a reduced diameter of 0.19 in (4.8 mm) to maximize airflow and flexibility in tight spaces. This slim profile is particularly beneficial in configurations requiring high-density patching where space is at a premium. The cable supports data transfer rates up to 10 GBPS and is suitable for Power over Ethernet (PoE) and VoIP applications. Each RJ-45 male connector is protected by a PVC snagless boot to prevent accidental snags and provide extra strain relief during installation. This UTP cable is compliant with RoHS, REACH, and CE standards and meets the electrical performance requirements of ANSI/TIA-568.2-D and ISO/IEC 11801-1. This gray-jacketed cable provides a reliable connection for network hardware requiring Cat6a performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301172 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
What is the maximum data transfer rate for the C2G30117?
This Cat6a patch cable supports data transfer rates up to 10 GBPS.
Will this cable work for Power over Ethernet (PoE) applications?
Yes, the 28AWG construction makes this cable suitable for Power over Ethernet (PoE) and VoIP situations.
What is the benefit of the slim 28AWG design?
The 0.19 in (4.8 mm) diameter provides greater flexibility in tight spaces and allows for increased airflow compared to standard Cat6 cables.
What certifications does this cable carry?
The C2G30117 is CE, REACH, and RoHS compliant.
Does this cable include snagless protection?
Yes, it features a molded, snagless PVC connector hood to prevent cable snags during installation.
