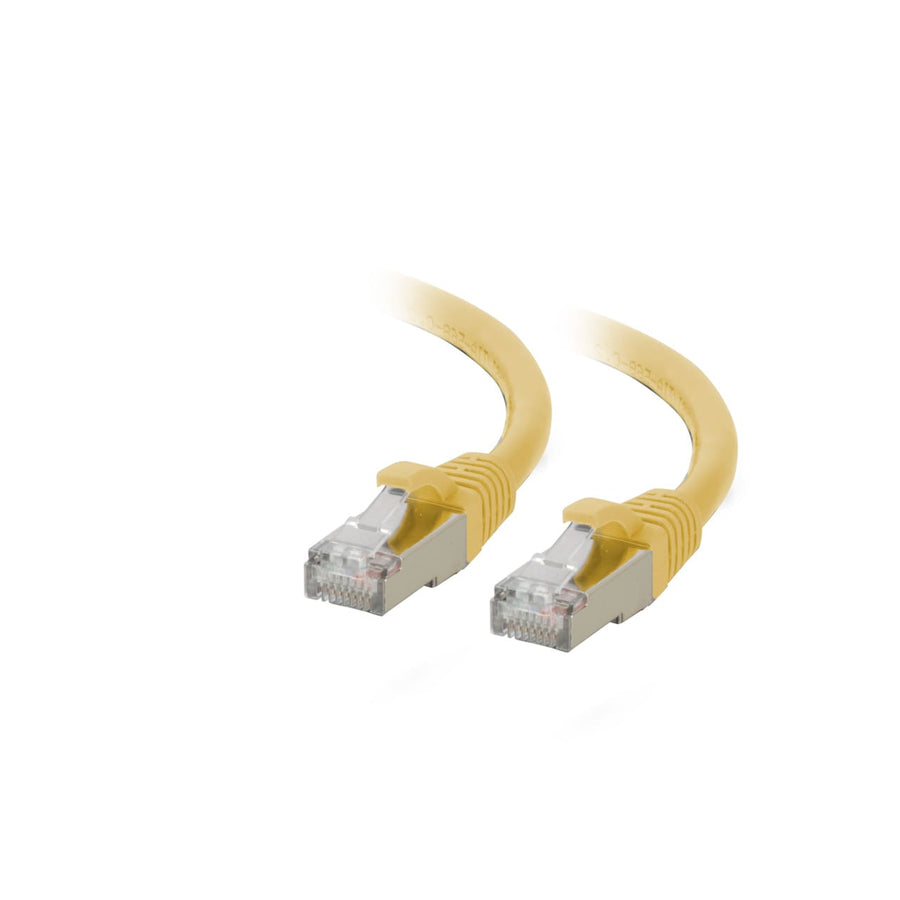

7ft (2.1m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Yellow
7ft (2.1m) Yellow Cat6A Shielded STP patch cable supporting 10Gbps data transfer for high-density networking.
The C2G07376 is a 7 ft (2.1 m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable in yellow. Designed for high-speed 10 Gigabit networks, this cable is ideal for connecting network adapters, hubs, switches, routers, and patch panels. It provides essential protection against electromagnetic interference (EMI) and noise through its Shielded STP construction, making it suitable for bandwidth-intensive voice, data, and video distribution applications. Each cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements, ensuring compliance with industry standards. The design features stranded copper conductors with 26 AWG wire gauge and 50 µ in gold plating on the RJ-45 male connectors. To facilitate ease of use in high-density environments, the cables include snagless, booted PVC hoods that protect the connector locks and feature individual length labels. This yellow cable is built for performance, minimizing Near-End Crosstalk (NEXT) and reducing both impedance and structural return loss (SRL).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073765 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Will the C2G07376 work for 10 Gigabit Ethernet applications?
Yes, this Cat6a cable supports 10 Gbps data transfer rates and is designed for 10GBase-T ports, including switches, routers, and network adapters.
Does this cable provide protection against electromagnetic interference?
Yes, the Shielded STP (STP) construction is specifically designed to protect high-speed network connections from noise and electromagnetic interference.
What is the wiring scheme used for this patch cable?
This C2G07376 patch cable utilizes the T568B wiring scheme.
Is this cable suitable for high-density rack environments?
Yes, the snagless connector design protects the RJ-45 lock and is specifically intended for use in high-density environments.
What certifications does this Cat6a cable meet?
The cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements and is CE, RoHS, and REACH compliant.
