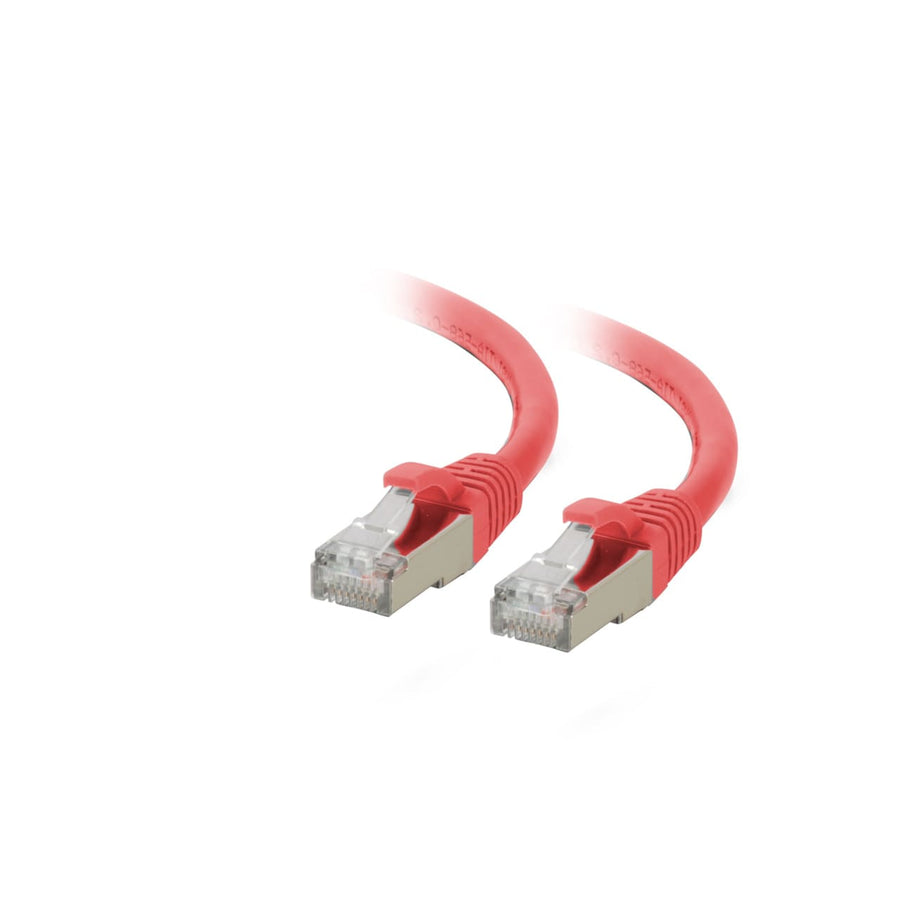

7ft (2.1m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Red
7ft Red Cat6a shielded STP patch cable supporting 10Gbps data transfer for high-density network environments
The C2G07366 is a 7 ft (2.1 m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable in red, designed for high-speed 10Gbps network environments. This cable is built to support bandwidth-intensive applications by providing 500 MHz of bandwidth and reducing impedance and structural return loss (SRL). It is ideal for connecting network adapters, hubs, switches, routers, and DSL/cable modems to 10GBase-T ports. The shielded twisted pair (STP) construction protects critical high-speed connections from electromagnetic interference and noise. Each cable features 26 AWG stranded copper conductors with 50 µ in gold plating on the RJ-45 male connectors. The snagless, booted connector design protects the RJ-45 lock and is optimized for high-density environments. This Cat6a component cable is fully tested to meet ANSI/TIA 568-C.2 requirements. The cable features a PVC jacket and FMPE insulation, with an operating temperature range of -4°F to 176°F (-20°C to 80°C). Each cable includes an individual length label for easy identification in complex installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073666 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Is the C2G07366 compatible with 10Gbps networks?
Yes, this Cat6a cable supports 10Gbps data transfer rates and is designed for use with 10GBase-T ports and equipment.
What is the maximum operating temperature for this red Cat6a cable?
The operating temperature range for this cable is -4°F to 176°F (-20°C to 80°C).
