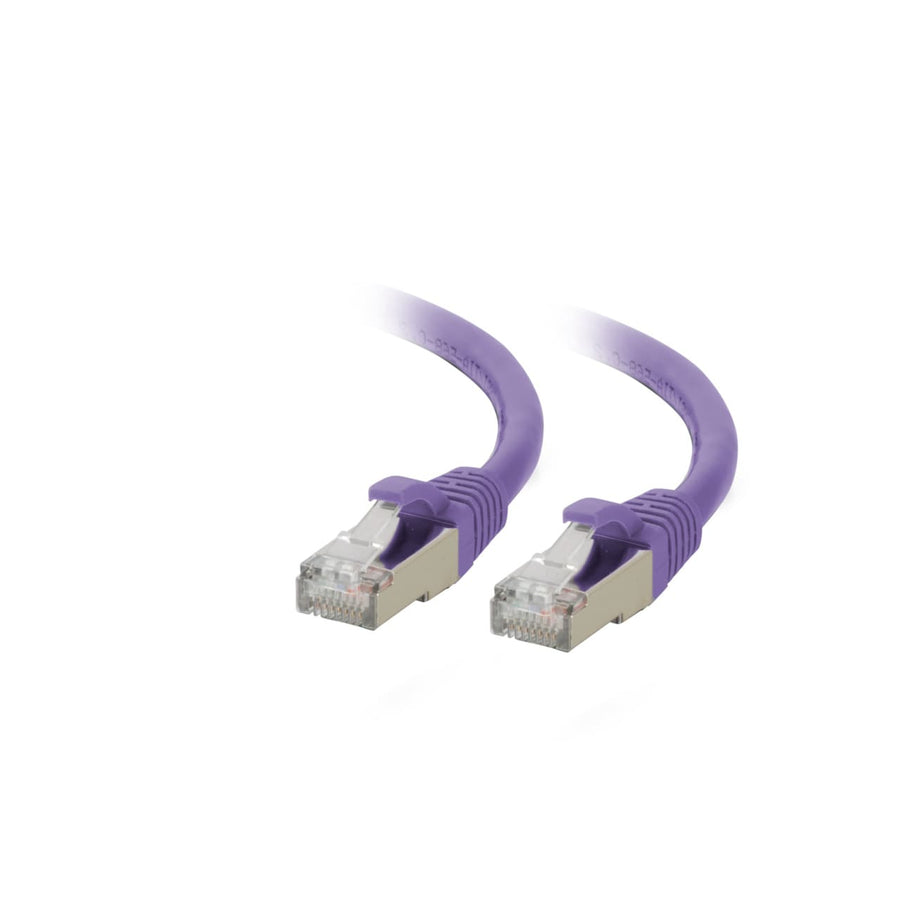

7ft (2.1m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Purple
7ft Cat6A Shielded STP patch cable in Purple, supporting 10Gbps data transfer for high-speed network environments
The C2G07400 is a 7 ft (2.1 m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable in Purple, engineered for high-speed 10 Gigabit Ethernet applications. This cable is designed for use with 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, and patch panels, as well as HDBaseT applications. It utilizes Shielded Twisted Pair (STP) construction with copper stranded conductors to protect high-speed network connections from noise and electromagnetic interference. This shielding, combined with individual pair bonding that maintains twist-spacing to the termination point, helps minimize Near-End Crosstalk (NEXT) and reduces impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements and supports a bandwidth of 500 mHz. The snagless, booted RJ-45 male connectors feature 50 µ in gold plating on the contacts for reliable connectivity and include a PVC hood to protect the locking tab in high-density environments. This purple cable is ideal for color-coding network installations to improve management efficiency.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120074007 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
