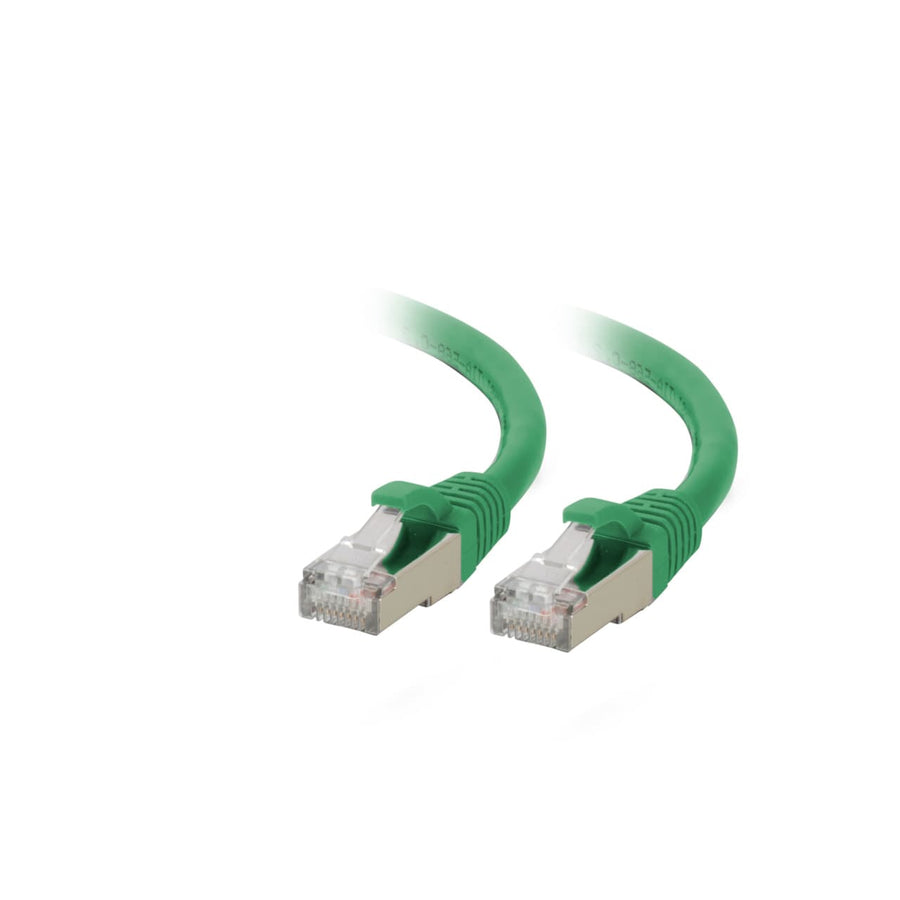

7ft (2.1m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Green
7ft (2.1m) Green Cat6A shielded STP patch cable supporting 10Gbps data transfer rates
The C2G07356 is a 7 ft (2.1 m) Cat6A shielded STP Ethernet network patch cable designed to facilitate high-speed 10Gbps data transmission. This green cable is engineered for use with 10GBase-T equipment, including network adapters, hubs, switches, routers, and patch panels. By utilizing shielded twisted pair (STP) construction, it protects sensitive network connections from electromagnetic interference and noise. The cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring performance for bandwidth-intensive applications. Each individual pair is bonded together to maintain twist-spacing throughout the line up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. Featuring a snagless connector design, these RJ-45 male connectors protect the locking tab in high-density environments. This cable supports a bandwidth of 500 mHz and features 26 AWG stranded copper conductors with 50 µ in gold plating. It is rated for operating temperatures from -4°F (-20°C) to 176°F (80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073567 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
The C2G07356 supports 10 Gbps data transfer rates and is designed for 10GBase-T equipment like switches and routers.
The C2G07356 supports 10 Gbps data transfer rates and is designed for 10GBase-T equipment like switches and routers.
Does this cable provide protection against interference?
Yes, the shielded STP (Shielded Twisted Pair) construction is designed to protect high-speed network connections from noise and electromagnetic interference.
What is the difference between the snagless design and standard RJ-45?
The snagless connector design features a boot that protects the RJ-45 connector's locking tab, preventing damage in high-density environments.
Is this cable suitable for high-density patch panels?
Yes, the snagless design is specifically intended for high-density environments where protecting the connector's lock is critical.
Which standards does this Cat6A cable meet?
This cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a component requirements.
