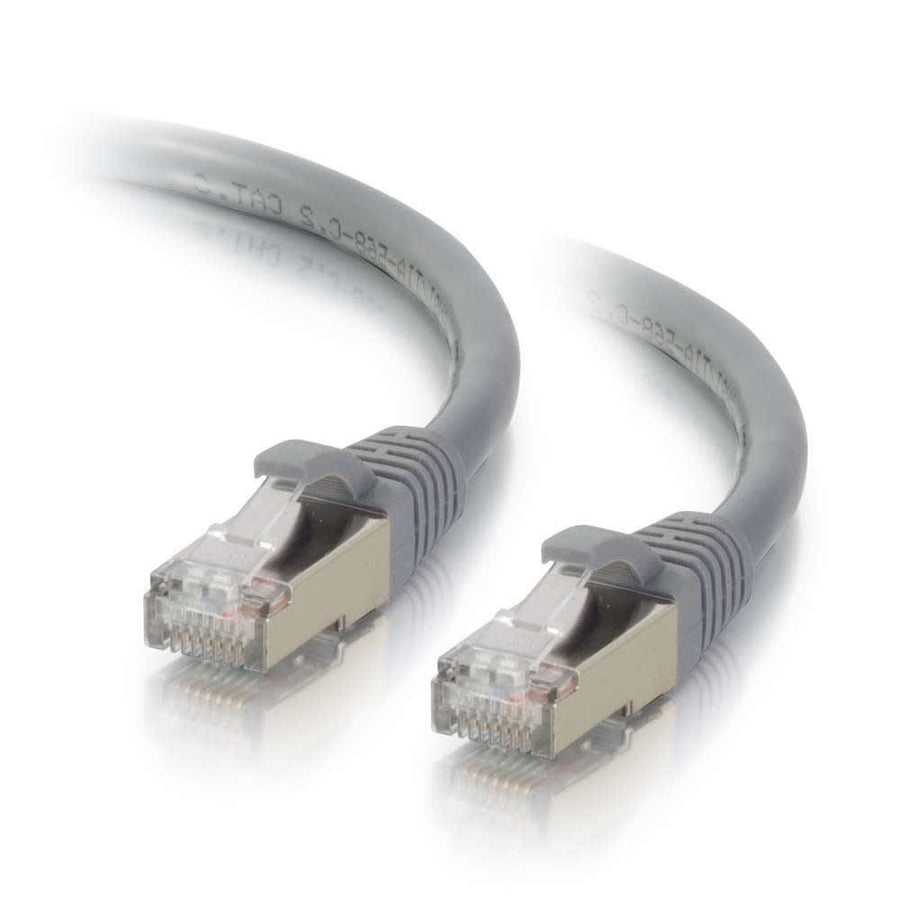

7ft (2.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Gray
7ft Cat6a Snagless Shielded STP Ethernet Patch Cable in Gray, tested to ANSI/TIA 568 C.2 component requirements
The C2G CG00644 is a 7 ft (2.1 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed for 10GBase-T ports and equipment. This cable is suitable for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It is engineered to protect high-speed 10 Gigabit network connections from noise and electromagnetic interference (EMI). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, helping to minimize Near-End Crosstalk (NEXT) levels. The construction features 26AWG bare copper stranded conductors with FMPE (Foam Polyethylene) insulation to maintain twist-spacing and reduce structural return loss (SRL). This gray patch cable utilizes a snagless, booted connector design with PVC hoods and a PVC jacket. It is built to operate in environments ranging from -4°F to 176°F (-20°C to 80°C) and is compliant with REACH, RoHS, and NDAA 889 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006442 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will the C2G CG00644 work for 10 Gigabit Ethernet?
Yes, this Cat6a cable is specifically designed for use with 10GBase-T ports, hubs, and switches to support high-speed network requirements.
What is the wiring scheme for the CG00644?
This patch cable follows the 568B wiring scheme and is fully tested to meet ANSI/TIA 568 C.2 component standards.
Is this cable shielded against interference?
Yes, the CG00644 features Shielded STP (SSTP) construction to reduce impedance, structural return loss, and Near-End Crosstalk (NEXT).
What is the operating temperature range for this patch cable?
This cable is rated for operating temperatures between -4°F and 176°F (-20°C to 80°C).
Does the CG00644 meet NDAA requirements?
Yes, this product is listed as NDAA 889 compliant and is also REACH, RoHS, and CE certified.
