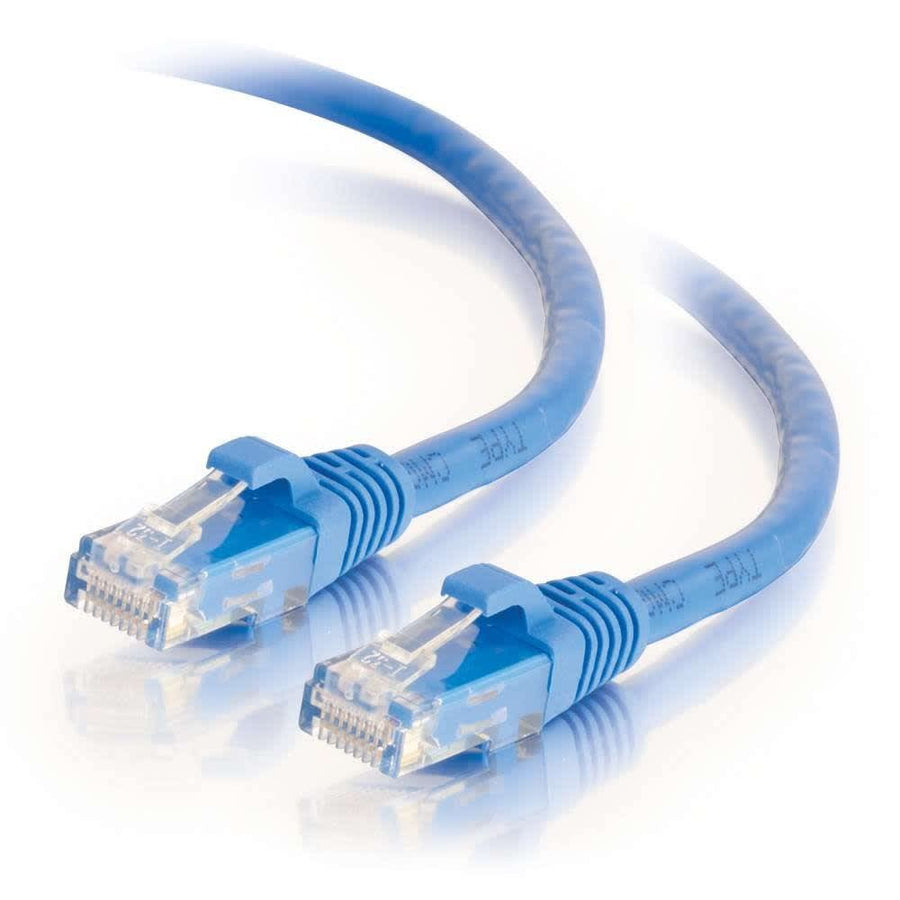

7ft (2.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack - 50 Pack - Blue
50-pack of 7ft (2.1m) Blue Cat6 UTP snagless patch cables with stranded copper conductors and RJ-45 connectors
The C2G CG29008 is a 50-count multipack of 7 ft (2.1 m) Cat6 unshielded UTP Ethernet patch cables designed for bandwidth-intensive voice, data, or video distribution. These cables meet all Cat6 TIA/EIA standards and are engineered to drastically reduce structural return loss (SRL) and impedance. Each individual pair is bonded together to maintain consistent twist-spacing through the entire line up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. The cables feature stranded copper conductors and a 24 AWG wire gauge. Each cable is equipped with a molded, snagless PVC boot to provide extra strain relief and prevent snags during installation. These Blue cables utilize an RJ-45 male to RJ-45 male connector configuration and follow the T568B wiring scheme. Operating within a temperature range of -4° to 176°F (-20° to 80°C), these cables are suitable for high-performance Gigabit computer networks. The jacket is constructed from PVC material.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.9 in (22.8 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Package Count | 50 |
| Shield Type | UTP |
| Shipping Weight | 12.05 lbs (5.5 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 19
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120290087 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the length and color of the cables in this pack?
This multipack contains 50 cables, each measuring 7 ft (2.1 m) in length and colored Blue.
What wiring scheme do these Cat6 cables use?
The CG29008 patch cables are manufactured using the T568B wiring scheme.
Are these cables shielded or unshielded?
These are Unshielded Twisted Pair (UTP) cables, designed to minimize Near-End Crosstalk (NEXT).
What is the temperature rating for the CG29008?
The operating temperature range for these cables is -4°F to 176°F (-20°C to 80°C).
What certifications does this product hold?
The CG29008 is compliant with CE, REACH, RoHS, and TSCA, and is NDAA 889 compliant.
