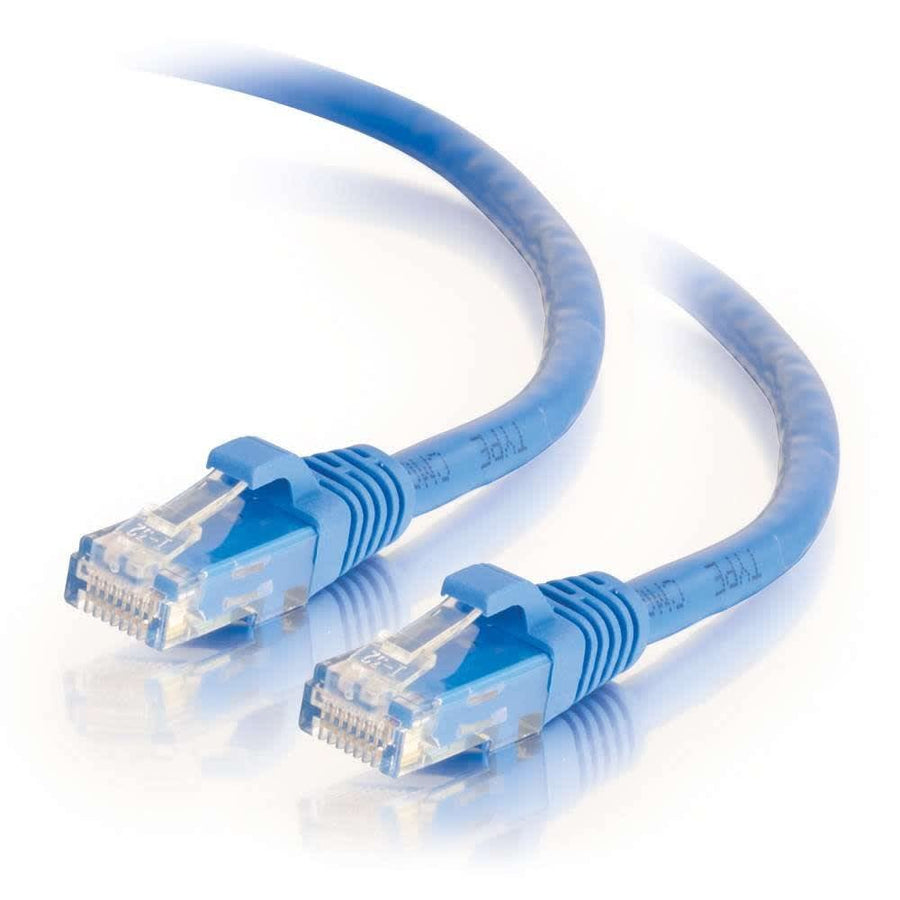

7ft (2.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack - 25 Pack - Blue
25-pack of 7ft (2.1m) blue Cat6 UTP snagless patch cables with stranded copper conductors
The C2G CG29007 is a 25-pack of 7ft (2.1m) Cat6 UTP Ethernet patch cables in blue, designed for high-bandwidth voice, data, and video distribution in Gigabit computer networks. These cables utilize 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) and meet all Cat6 TIA/EIA standards. The construction features bonded pairs to maintain twist-spacing up to the termination point, which helps reduce impedance and structural return loss (SRL). Each cable is equipped with snagless, booted RJ-45 male connectors made with PVC hood material to provide strain relief and prevent snags during installation. These unshielded (UTP) cables have a cable diameter of 0.24 in (6.2 mm) and a bend radius of 0.9 in (22.8 mm). The wiring scheme follows the T568B standard, ensuring compatibility with standard networking equipment. These cables are rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C) and are TAA non-compliant.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.9 in (22.8 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Package Count | 25 |
| Shield Type | UTP |
| Shipping Weight | 4.98 lbs (2.3 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 19
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120290070 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Will these cables work for a standard Gigabit network installation?
Yes, these Cat6 cables are designed for high-bandwidth voice, data, and video applications and meet all TIA/EIA Cat6 standards.
What is the wiring standard used for the CG29007?
These patch cables utilize the T568B wiring scheme for all connections.
Are these cables shielded or unshielded?
The CG29007 is an unshielded (UTP) cable featuring 24 AWG stranded copper conductors.
What is the total package count for this SKU?
This SKU is a multipack containing 25 individual 7ft (2.1m) cables.
What is the bend radius for these patch cables?
These cables have a minimum bend radius of 0.9 in (22.8 mm).
