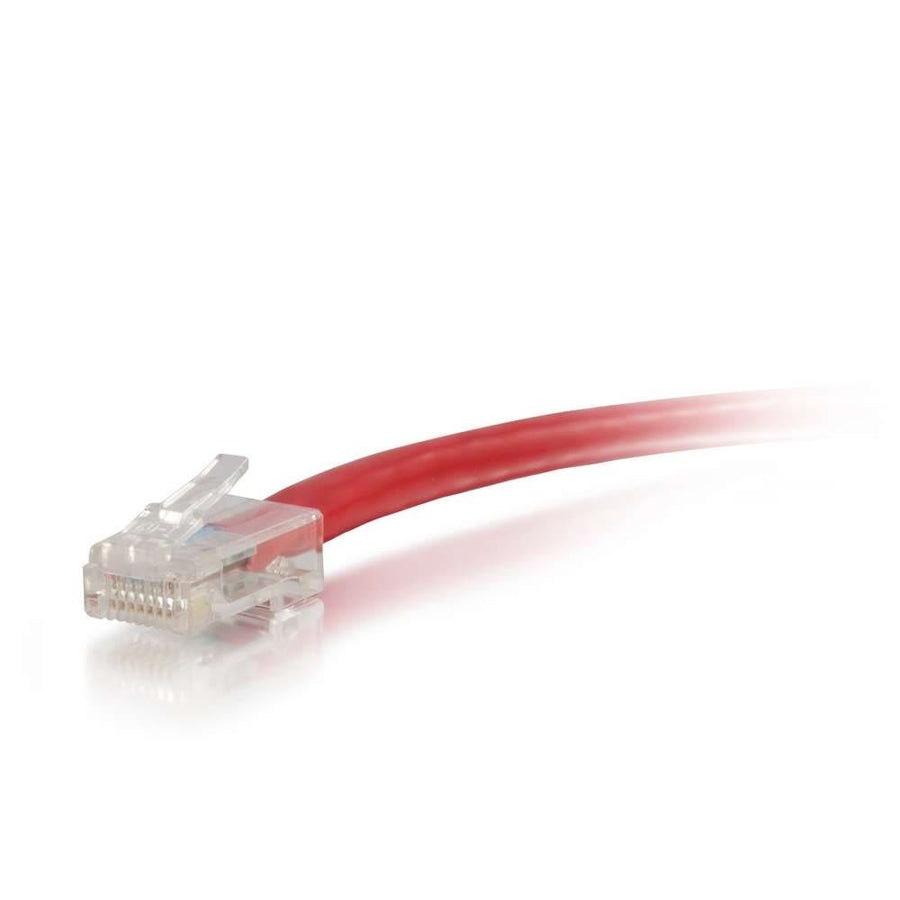

7ft (2.1m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Red
7ft (2.1m) Red Cat6 unshielded UTP patch cable with stranded copper conductors and T568B wiring
The C2G CG04154 is a 7 ft (2.1 m) Cat6 unshielded UTP Ethernet patch cable in red, designed for bandwidth-intensive voice, data, or video distribution applications. This cable is built for high-speed Ethernet and Gigabit computer networks, meeting all TIA/EIA Cat6 standards. It features a 24 AWG stranded copper conductor construction, which is engineered to minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing through the termination point. This design significantly reduces impedance and structural return loss (SRL). The cable utilizes a non-booted connector type with RJ-45 male ends on both sides and follows the T568B wiring scheme. The PVC jacket is rated for a maximum temperature of 75°C. This red cable is an ideal choice for installers who need to color-code network paths for easier troubleshooting in high-density environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.19 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041542 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring scheme for the C2G CG04154?
This Cat6 patch cable uses the T568B wiring scheme for all terminations.
Is the C2G CG04154 suitable for Gigabit networks?
Yes, it is designed for fast Ethernet and Gigabit computer networks requiring high-bandwidth distribution for voice, data, or video.
What are the conductor specifications for this cable?
The cable features 24 AWG stranded copper conductors and is an unshielded (UTP) type.
How does the construction of this cable help prevent crosstalk?
The design utilizes stranded copper and bonded individual pairs to maintain twist-spacing, which minimizes Near-End Crosstalk (NEXT) levels.
What is the temperature rating for the PVC jacket?
The PVC jacket on this CG04154 cable has a temperature rating of 75°C.
