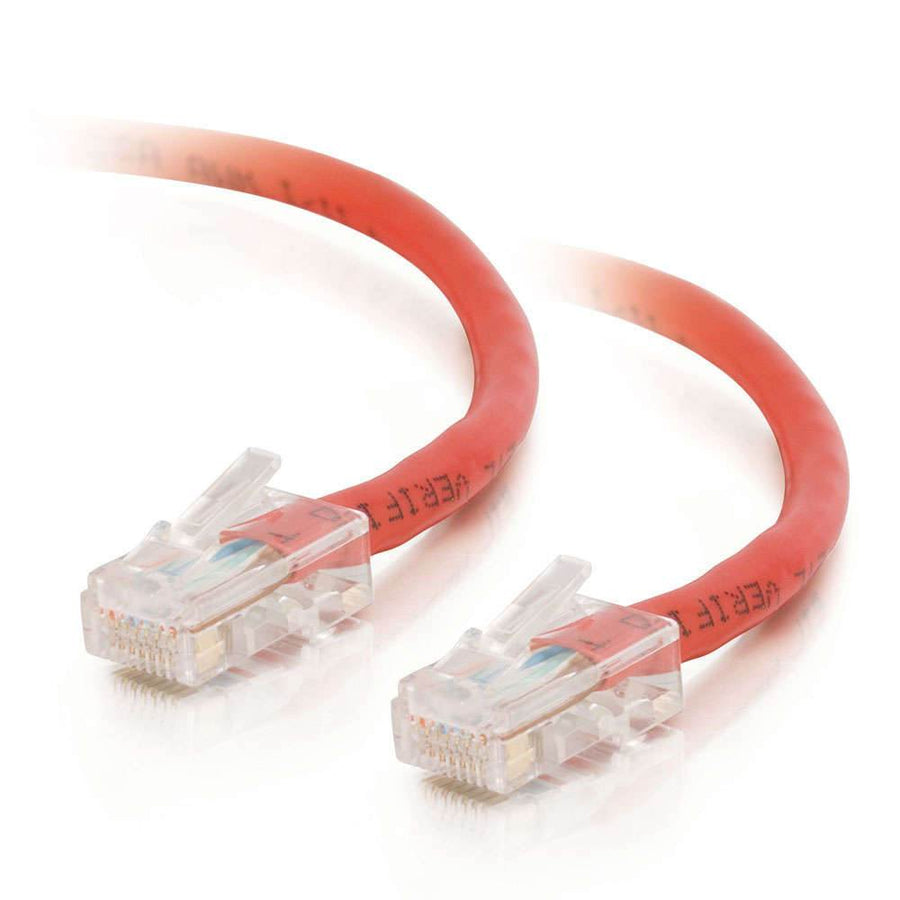

7ft (2.1m) Cat5e Non-Booted Unshielded UTP Network Crossover Patch Cable - Red
7 ft (2.1 m) Cat5e crossover patch cable in red for peer-to-peer device connections
The C2G CG24510 is a 7 ft (2.1 m) Cat5e non-booted unshielded UTP network crossover patch cable in red. This crossover cable features a specific crossed pin configuration, making it an ideal solution for connecting two computers directly to share files or data without the requirement of a hub or switch. It is also designed to link network switches and hubs that lack an uplink port for connecting to other switches or hubs. This cable is constructed to meet all Cat5e TIA/EIA standards, specifically engineered to reduce impedance and structural return loss (SRL). To minimize Near-End Crosstalk (NEXT) levels, the design utilizes a shortened body plug and ensures each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point. This 24 AWG cable features stranded copper conductors, HDPE insulation, and a PVC jacket, operating within a temperature range of -4° to 176°F (-20° to 80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Non-Booted |
| Category Performance Application | Cat5e |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120245100 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the purpose of the CG24510 crossover cable?
The CG24510 allows two computers to connect peer-to-peer for data sharing and can also connect network switches or hubs that do not have an uplink port.
Will this cable work for standard Ethernet connections?
This is a crossover cable with a T568B wiring scheme, specifically designed for direct device-to-device linking rather than standard star topology connections.
What are the physical specifications of the CG24510?
This cable is 7 ft (2.1 m) long with a 0.21 in (5.3 mm) diameter and uses 24 AWG stranded copper conductors.
What is the operating temperature range for this cable?
The operating temperature range for this red Cat5e cable is -4° to 176°F (-20° to 80°C).
Which compliance certifications does this cable meet?
This cable is compliant with RoHS, REACH, and CE, and is listed as NDAA 889, Prop 65, and TSCA compliant.
