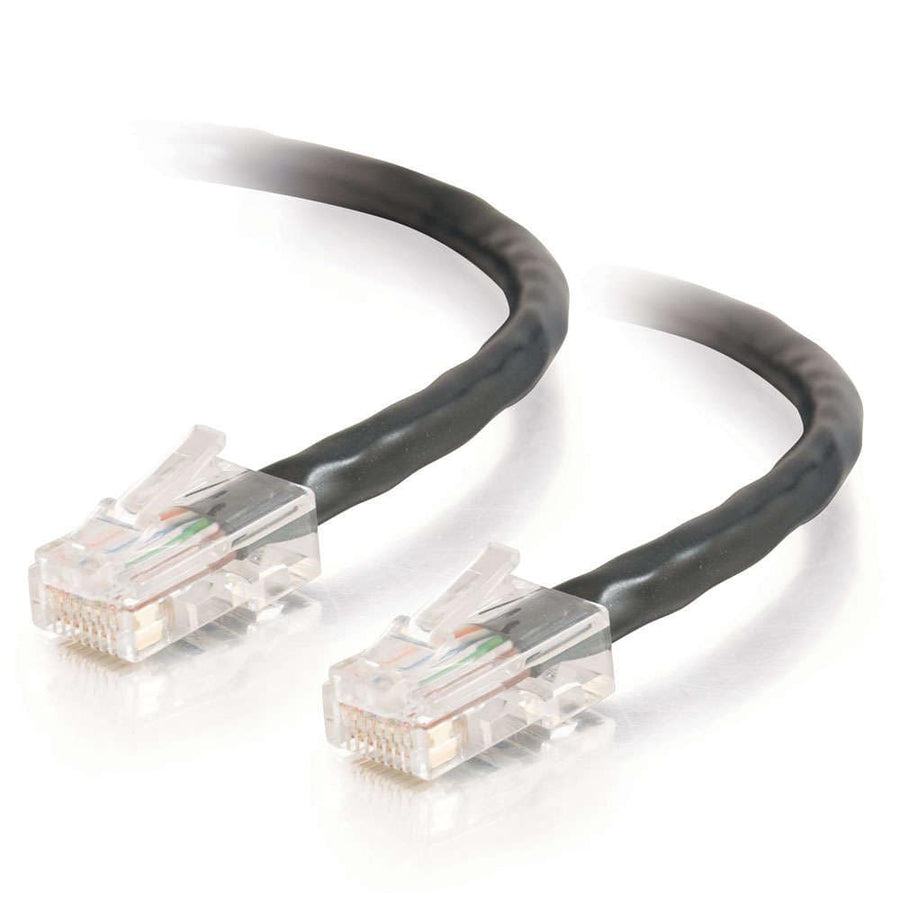

7ft (2.1m) Cat5e Non-Booted Unshielded UTP Network Crossover Patch Cable - Black
7ft Cat5e crossover patch cable, black unshielded UTP, with RJ-45 male connectors for direct PC-to-PC networking
The C2G CG24508 is a 7 ft (2.1 m) Cat5e crossover patch cable designed specifically for networking two PCs together directly. This unshielded (UTP) cable utilizes a T568B wiring scheme to facilitate the crossover connection required for direct device-to-device communication. Each connector is a standard RJ-45 male type, and the cable features a non-booted design with a 0.21 in (5.3 mm) diameter. Constructed with stranded copper conductors and HDPE (High-density Polyethylene) insulation, this cable is built for reliable performance within a bandwidth of 350 mHz. The black PVC jacket is rated for standard/non-rated use, and the assembly is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C). This specific SKU is part of a broader series of crossover Category cables available in various lengths up to 25ft and multiple colors for network identification.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 16
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Non-Booted |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
Resources
Questions about this part
What is the main use for the C2G CG24508 crossover cable?
This cable is designed to facilitate a direct connection between two PCs for networking purposes.
Does this cable follow the T568B wiring standard?
Yes, the CG24508 uses the T568B wiring scheme for its RJ-45 male connectors.
What is the operating temperature range for this patch cable?
This cable is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C).
Is the CG24508 a shielded or unshielded cable?
The CG24508 is an unshielded (UTP) cable featuring a PVC jacket and HDPE insulation.
What other lengths or colors are available in this series?
This series offers lengths up to 25ft and is available in 7 colors, including Black, Gray, Orange, Red, and Yellow.
