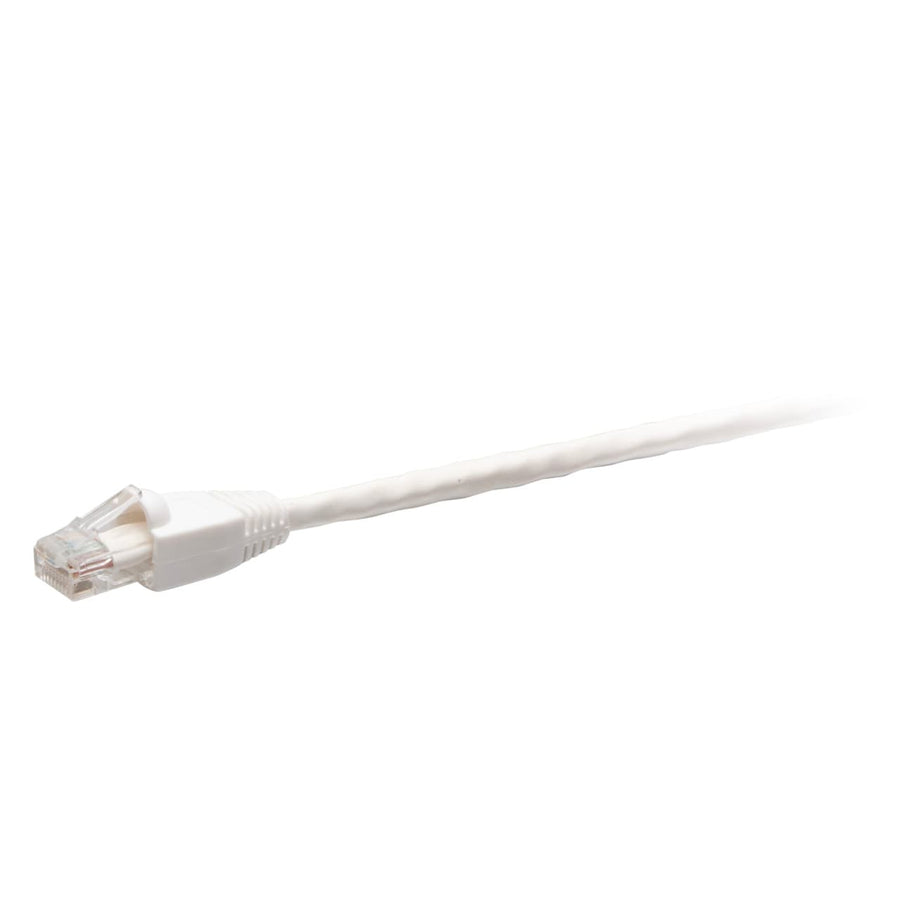

75ft (22.8m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - White
75ft TAA-compliant Cat6 UTP cable with white snagless RJ-45 connectors and CMR rated jacket
The C2G43588 is a TAA-compliant 75ft (22.9 m) Cat6 Unshielded Twisted Pair (UTP) network cable designed for use in United States government projects and facilities. This passive cable features 50-micron gold-plated contacts to assist with signal integrity and is constructed with high-quality, made in the USA copper conductors. The stranded 24 AWG wire uses a T568B wiring scheme to support various applications, including 1000BASE-T 1 Gigabit Ethernet. This snagless design includes a molded boot that protects the RJ-45 clips from being snapped off during installation and provides additional strain relief. It is a CMR rated riser cable with a PVC jacket, rated for operating temperatures ranging from -4° - 167°F (-20° - 75°C). The cable has a diameter of 0.22 in (5.6 mm) and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 1.66 lbs (0.8 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435884 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is this C2G43588 cable TAA compliant?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
What is the maximum performance capability of this Cat6 cable?
This Cat6 cable supports 1000BASE-T (1 Gigabit Ethernet) and is designed with an enhanced 600 MHz maximum frequency.
Can this cable be used in riser applications?
Yes, this cable features a CMR rated jacket specifically for riser applications.
