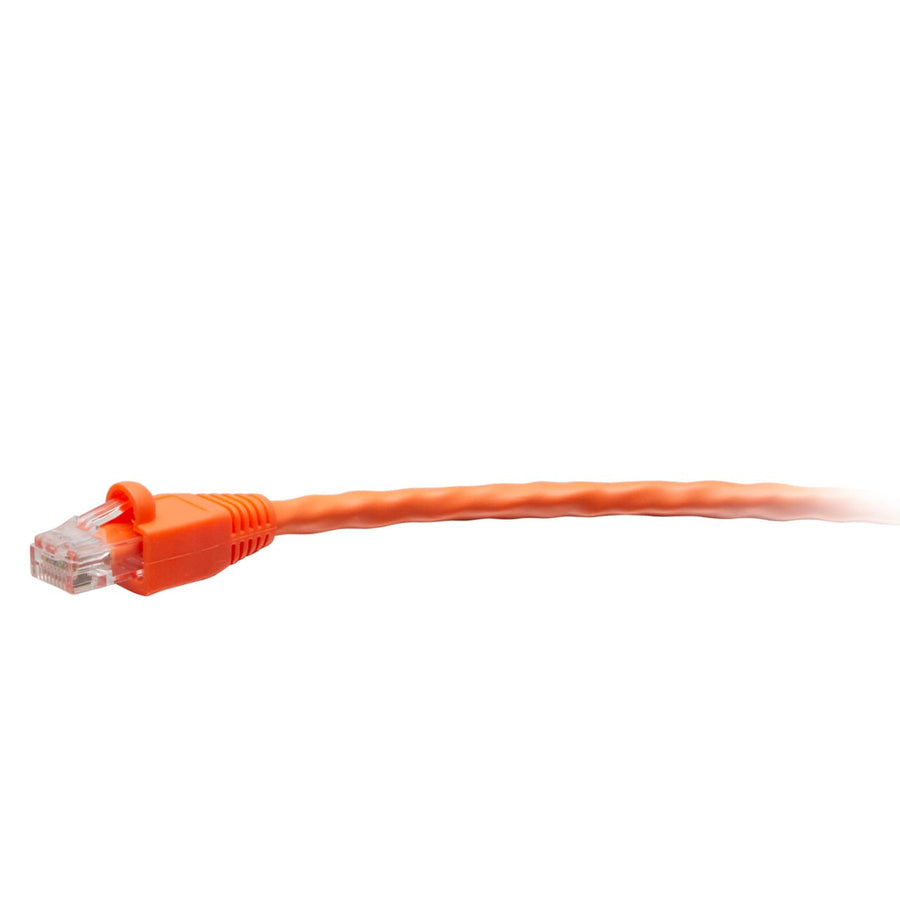

75ft (22.8m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Orange
75ft TAA-compliant Cat6 unshielded UTP network cable, orange, with snagless RJ45 connectors and CMR rating
The C2G43546 is a 75 ft (22.9 m) TAA-compliant Cat6 unshielded UTP network cable designed for high-performance connectivity in professional environments. This passive cable is ideal for connecting network adapters, hubs, switches, routers, and servers. It is built with high-quality, made in the USA copper stranded conductors and features a 24 AWG wire gauge. The cable is rated CMR for riser applications and utilizes a PVC jacket. Each end is terminated with an RJ45 Male connector featuring a snagless boot to protect the clips and provide strain relief, alongside 50-micron gold-plated contacts to maintain signal integrity. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T 1 Gigabit Ethernet applications. The orange jacket allows for easy color-coding within complex network installations. This product is TAA compliant and is suitable for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 1.66 lbs (0.8 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435464 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Will this C2G43546 cable work for 1 Gigabit Ethernet?
Yes, this Cat6 cable meets ANSI/TIA-568.2-D standards for supporting 1000BASE-T 1 Gigabit Ethernet applications.
Is this cable suitable for government installations?
Yes, the C2G43546 is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum operating temperature for this Cat6 cable?
The operating temperature range for this cable is -4° - 167°F (-20° - 75°C).
What type of jacket rating does the C2G43546 have?
This cable features a CMR rated PVC jacket suitable for riser applications.
Does this cable include the necessary connectors?
The cable is terminated with (1) RJ-45 Male connector on each end with a snagless boot for strain relief.
