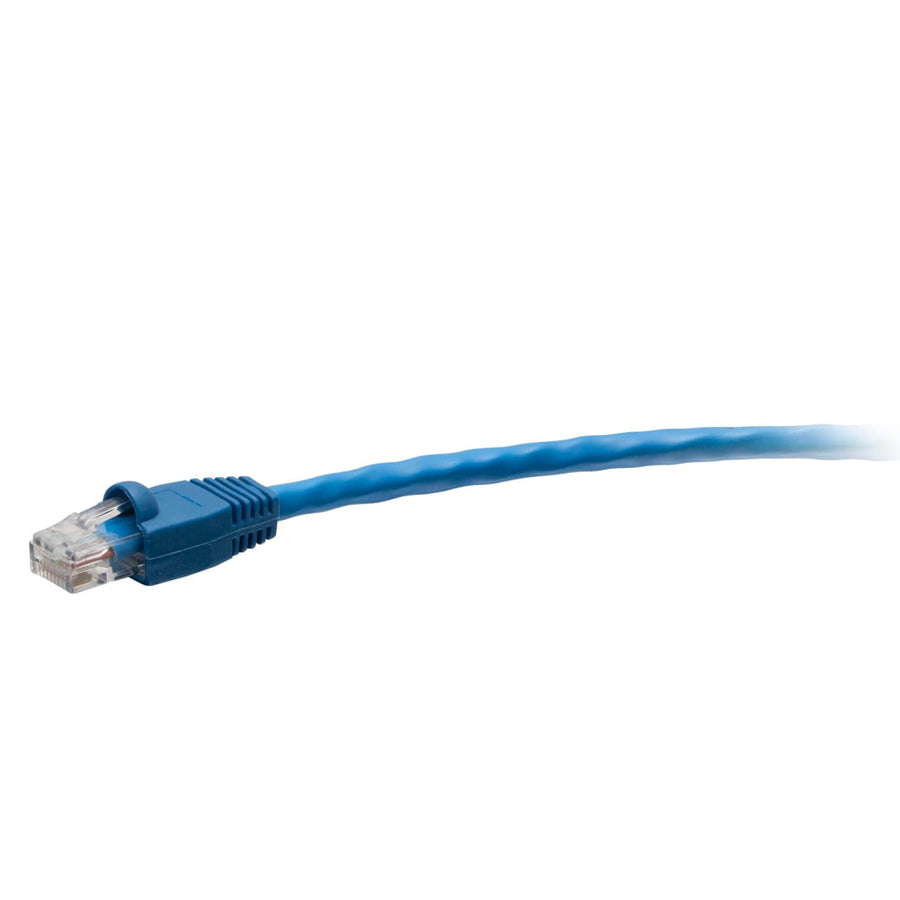

75ft (22.8m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Blue
75ft blue Cat6 UTP network cable, TAA-compliant, with snagless RJ45 connectors and CMR rating
The C2G43462 is a 75 ft (22.9 m) TAA-compliant Cat6 Unshielded Twisted Pair (UTP) network cable designed for use in United States government projects and facilities. This blue, passive cable features a snagless RJ45 connector design, which protects the clips from snapping during installation and provides extra strain relief during high insertion cycles. Built with made in the USA copper stranded conductors, this cable supports 1000BASE-T (1 Gigabit Ethernet) and meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. It features 50-micron gold-plated contacts to maintain signal integrity and operates within a temperature range of -4° to 167°F (-20° to 75°C). The CMR rated PVC jacket is suitable for riser applications. This cable is suitable for connecting network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 1.66 lbs (0.8 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434627 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43462 TAA compliant?
Yes, this is a TAA-compliant F-Series cable, making it approved for use in United States government projects and facilities.
What is the maximum performance rating for this Cat6 cable?
This cable is designed to support 1000BASE-T (1 Gigabit Ethernet) applications and meets ANSI/TIA-568.2-D standards.
What type of jacket rating does this cable have?
The C2G43462 features a CMR rated PVC jacket, making it suitable for riser applications.
What are the connector types on this cable?
The cable is terminated with two RJ-45 Male connectors featuring a snagless design to prevent clip breakage.
What accessories are compatible with this cabling series?
This cable works within network environments using accessories like the CG37200 48-Port Cat6 110-Type Patch Panel or the CG37199 24-Port Cat6 110-Type Patch Panel.
