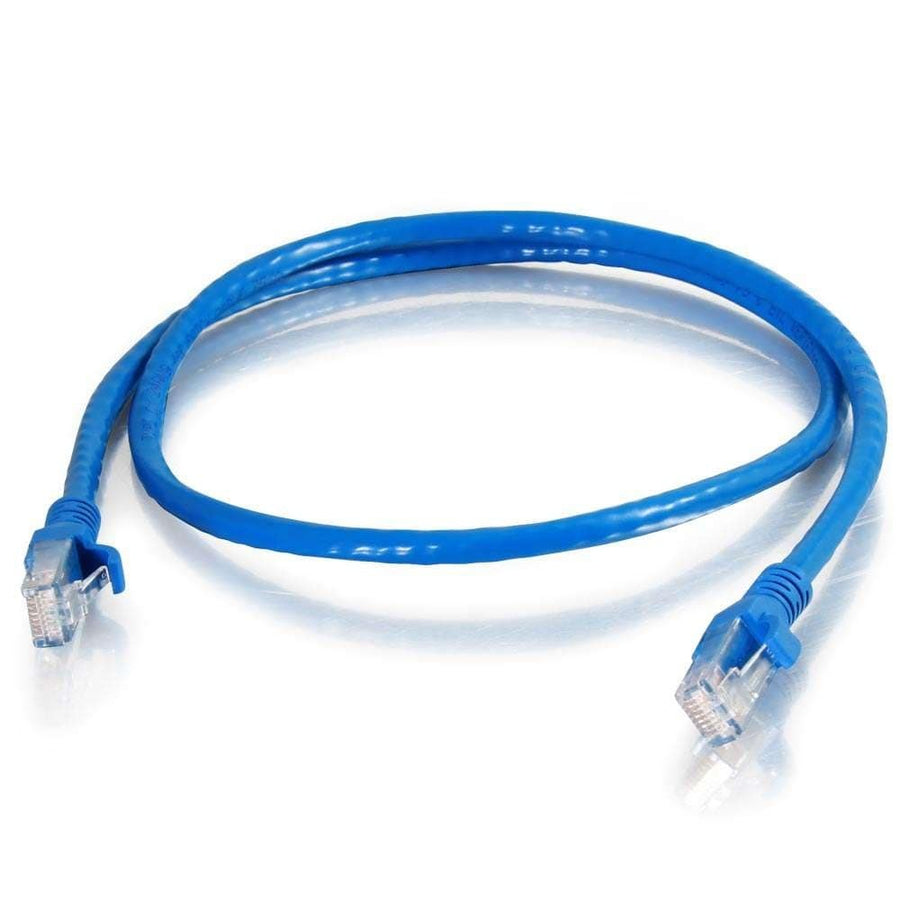

75ft (22.8m) Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Blue
75ft (22.9 m) Cat6 UTP snagless patch cable in Blue, featuring stranded copper conductors and TAA compliance
The CG10321 is a 75 ft (22.9 m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed for bandwidth-intensive voice, data, and video distribution. This Blue cable features a snagless, booted connector design that provides extra strain relief and prevents accidental snags during installation. Built with 24 AWG stranded copper conductors, the cable is engineered with a shortened body plug to minimize Near-End Crosstalk (NEXT) levels. It follows the T568B wiring scheme and is fully TAA compliant, making it suitable for projects requiring products manufactured in countries on the Trade Agreement Act list. This Cat6 cable is constructed with a PVC jacket and is rated for standard/non-rated applications. The construction is designed to meet all TIA/ANSI standards for reliable network performance.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 2.03 lbs (0.9 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
All other specifications 13
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120103219 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
Questions about this part
Is the C2G CG10321 TAA compliant?
Yes, this cable is TAA compliant, meeting the requirements for procurement from countries on the Trade Agreement Act list.
What is the wiring scheme for this Cat6 cable?
The CG10321 utilizes the T568B wiring scheme for standard network connectivity.
What is the conductor material and gauge for the CG10321?
This cable uses 24 AWG stranded copper conductors.
What kind of connector does this patch cable have?
It features two RJ-45 Male connectors with a snagless, booted design for added protection.
What is the diameter of the CG10321 cable?
The cable has a diameter of 0.24 in (6.2 mm).
