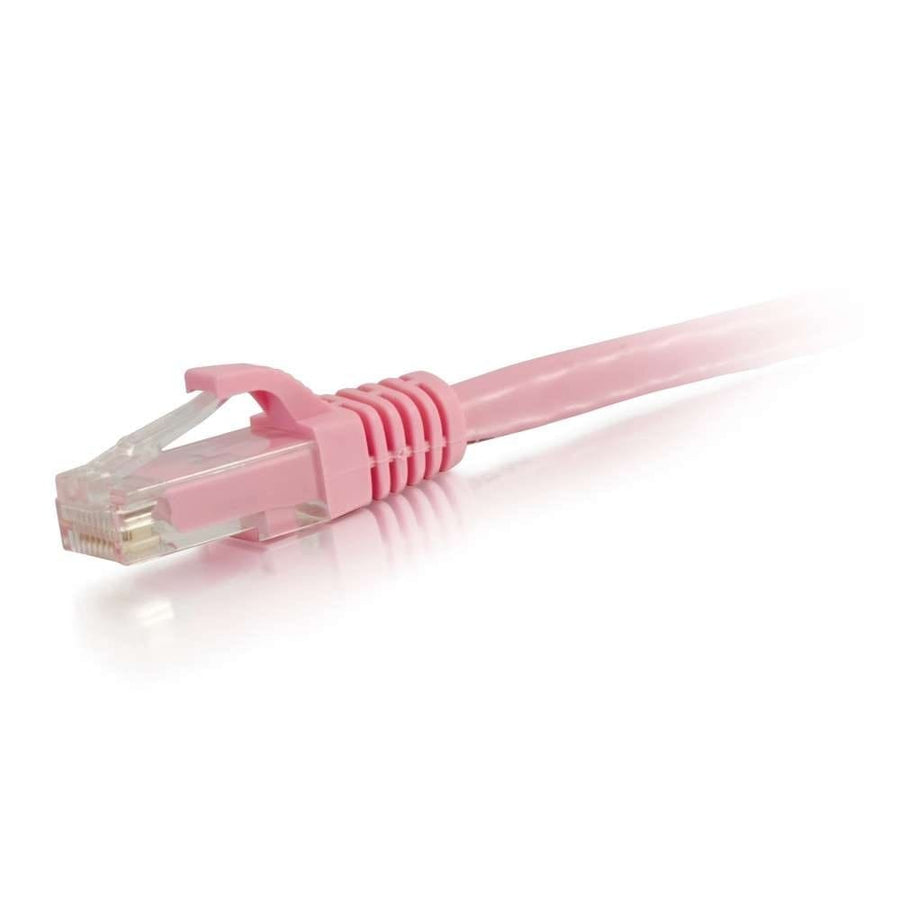

75ft (22.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Pink
75ft Cat6 snagless patch cable in pink, featuring unshielded twisted pair construction and stranded copper conductors
The C2G CG04061 is a 75ft (22.9 m) Cat6 snagless patch cable designed for high-bandwidth voice, data, and video distribution in Gigabit Ethernet networks. This unshielded twisted pair (UTP) cable uses 24 AWG stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels. Each pair is bonded to maintain twist-spacing from the cable to the termination point, which helps reduce impedance and structural return loss (SRL). This pink cable features a snagless, booted connector design that protects the RJ-45 clips from damage during installation and provides extra strain relief. It follows the T568B wiring scheme and is constructed with a PVC jacket and PVC connector hoods. This SKU is part of a wider series available in various lengths up to 150ft and 10 different colors to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 2.05 lbs (0.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040613 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the maximum length available in this C2G Cat6 series?
While this specific SKU is 75 ft, the series is available in lengths up to 150ft.
Does the CG04061 cable use stranded or solid copper?
The CG04061 uses stranded copper conductors, which provides better flexibility for patch applications.
What wiring standard is used for this pink Cat6 cable?
This cable is wired according to the T568B standard.
Is this cable suitable for high-bandwidth video distribution?
Yes, it is designed for Gigabit networks requiring bandwidth-intensive voice, data, or video distribution.
What is the difference between this and the other C2G color options?
This SKU is pink; the series offers 10 different colors to help installers color-code their network infrastructure.
