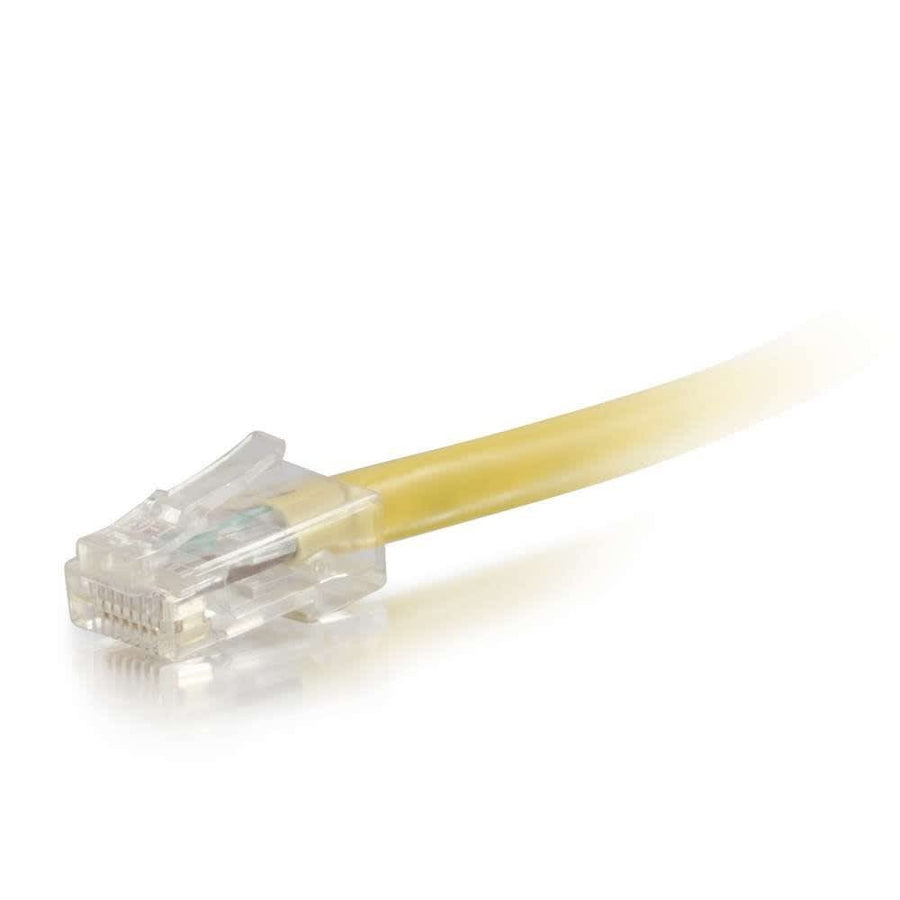

75ft (22.8m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Yellow
75ft Cat6 UTP patch cable, yellow color, 24 AWG stranded copper conductors, and T568B wiring scheme
The C2G CG04187 is a 75ft (22.9 m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth voice, data, or video distribution applications. This cable is built for fast Ethernet and Gigabit computer networks that require reliable performance. It features a stranded copper conductor with 24 AWG wire gauge and follows the T568B wiring scheme. The jacket is made of PVC and is rated as standard/non-rated, with a temperature rating of up to 75°C. The cable diameter is 0.24 in (6 mm), and the design includes individual pairs bonded together to maintain twist-spacing through the termination point, which helps to minimize Near-End Crosstalk (NEXT) levels. This yellow cable is suitable for color-coded network installations. The non-booted connector type includes two RJ-45 Male connectors, providing a streamlined profile for tight connection spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 1.94 lbs (0.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041870 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring scheme for the C2G CG04187?
This Cat6 patch cable uses the T568B wiring scheme and features two RJ-45 Male connectors.
Is the C2G CG04187 suitable for high-bandwidth video distribution?
Yes, this cable is designed for bandwidth-intensive applications including video, data, or voice distribution in Gigabit networks.
What is the maximum temperature rating for this yellow patch cable?
The PVC jacket material has a temperature rating of up to 75°C.
Does this cable help reduce crosstalk in network installations?
Yes, the design uses stranded copper conductors and bonded individual pairs to minimize Near-End Crosstalk (NEXT) levels.
What are the physical dimensions of the CG04187 cable?
The cable has a 0.24 in (6 mm) diameter and a total length of 75 ft (22.9 m).
