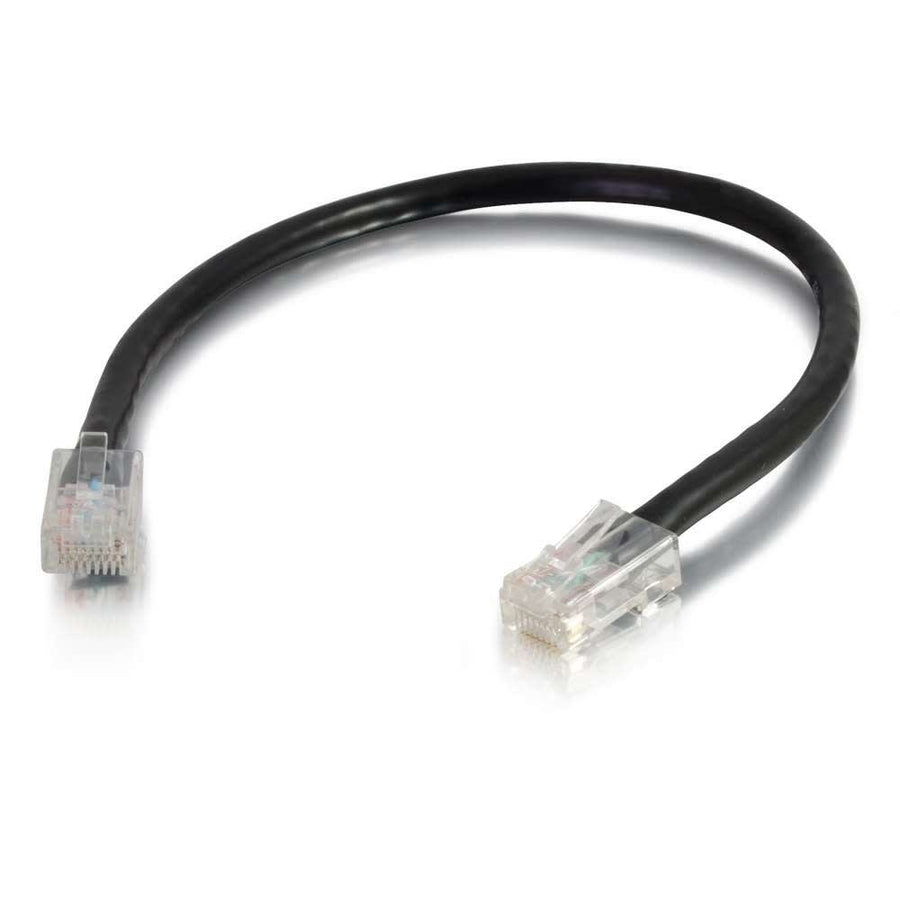

75ft (22.8m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
75ft Cat5e unshielded UTP patch cable with black PVC jacket and stranded copper conductors
The CG24401 is a 75ft (22.9 m) Cat5e unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet computer networks. This cable is constructed with high quality stranded copper conductors, which helps minimize Near-End Crosstalk (NEXT) levels. To maintain structural integrity, each individual pair is bonded together to preserve twist-spacing throughout the entire length of the line right up to the RJ-45 Male termination points. This specific model uses a T568B wiring scheme and features a non-booted connector type. The black PVC jacket has a 0.21 in (5.3 mm) diameter, and the cable is rated for standard/non-rated applications. It is engineered to meet all Cat5e TIA/EIA standards, significantly reducing both impedance and structural return loss (SRL) to support reliable network connectivity for hubs, switches, routers, and network adapters.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 1.8 lbs (0.8 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 13
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring standard for the CG24401 patch cable?
This Cat5e cable follows the T568B wiring scheme and features RJ-45 Male connectors.
What is the conductor material and stranding for this cable?
The CG24401 is constructed with stranded copper conductors to help minimize Near-End Crosstalk (NEXT).
Is this cable suitable for high-bandwidth video distribution?
Yes, it is designed for networks requiring bandwidth-intensive voice, data, or video distribution applications.
Does this C2G cable come in other colors or lengths?
Yes, this series is available in 10 different colors and lengths up to 150ft.
What is the diameter of the CG24401 cable jacket?
The cable has a 0.21 in (5.3 mm) diameter and is finished with a black PVC jacket.
