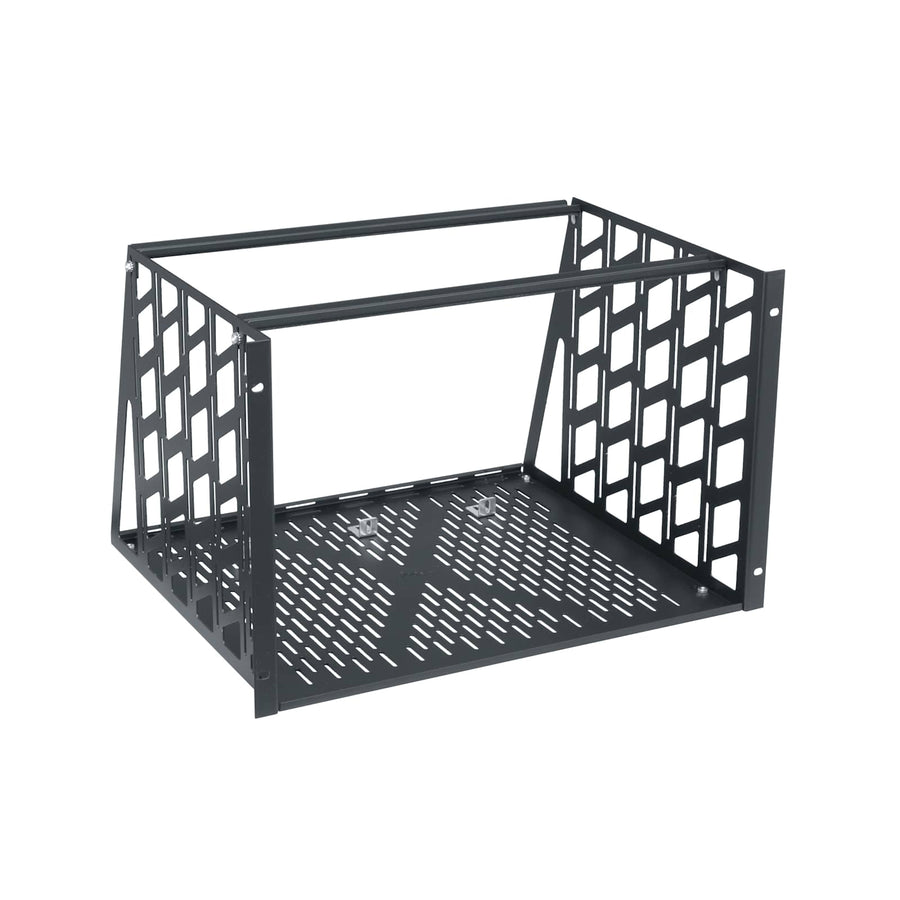

7 RU Clamping Rackshelf
7 RU clamping rackshelf with rubber-lined clamps, vented construction, and 100 lbs weight capacity
The Middle Atlantic CAP7 is a 7 RU clamping rackshelf designed to secure components within a rack using rubber-lined clamps. This robust 16-gauge steel shelf features a black powder coat finish and includes adjustable rear "L" brackets to prevent equipment from being pushed back. The design incorporates vented sides and a vented bottom to facilitate efficient cooling for mounted hardware. With a weight capacity of 100 lbs (45.4 kg) and a usable shelf area of 17.38"w x 15.10"d, it provides a stable platform for sensitive equipment. This TAA compliant shelf ships ready-to-assemble to save space and is UL Listed for safety. For thermal management, the CAP7 is compatible with various component coolers, such as the COMP-COOL50.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.37 in (39 cm) |
| Height | 12.25 in (31.1 cm) |
| Rack Units | 7 RU |
| Shipping Weight | 10 lbs (4.5 kg) |
| Usable Depth | 15.1 in (38.4 cm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 19 in (48.3 cm) |
| Mounting Points | 2 |
| UPC | 656747003141 |
| Certifications | UL Listed |
Resources
You'll need these with it
50 CFM Component Cooler with Platform
COMP-COOL50P$474.30
Shelf Mount Power, 8 Outlet, 15A, Basic Surge Protection
PD-815SC-PBSH$333.00
50 CFM Component Cooler, 220 - 240VAC
ICOMP-COOL50$379.80
50 CFM Component Cooler
COMP-COOL50$351.90
50 CFM Component Cooler with Platform, 220 - 240VAC
ICOMP-COOL50PDiscontinued
8 CFM Component Cooler, 220 - 240VAC - 3 Piece
ICOMP-COOL-3Discontinued
8 CFM Component Cooler, 220 - 240VAC
ICOMP-COOLDiscontinued
8 CFM Component Cooler - 3 Piece
COMP-COOL-3Discontinued
Questions about this part
Will the CAP7 fit my component?
The usable shelf area is 17.38"w x 15.10"d, which accommodates various hardware within a 7 RU footprint.
How much weight can the CAP7 support?
The CAP7 has a weight capacity of 100 lbs (45.4 kg) and is constructed from 16-gauge steel.
What accessories are compatible with this shelf?
You can add cooling via the COMP-COOL50 or COMP-COOL50P, or utilize the PD-815SC-PBSH power strip.
Is this shelf suitable for mobile applications?
Yes, the robust 16-gauge steel design is built to maintain structural integrity in mobile applications.
Which document should I use for installation?
You can refer to the CAPX Series Instruction Sheet (PDF) for guidance on assembly and use.
