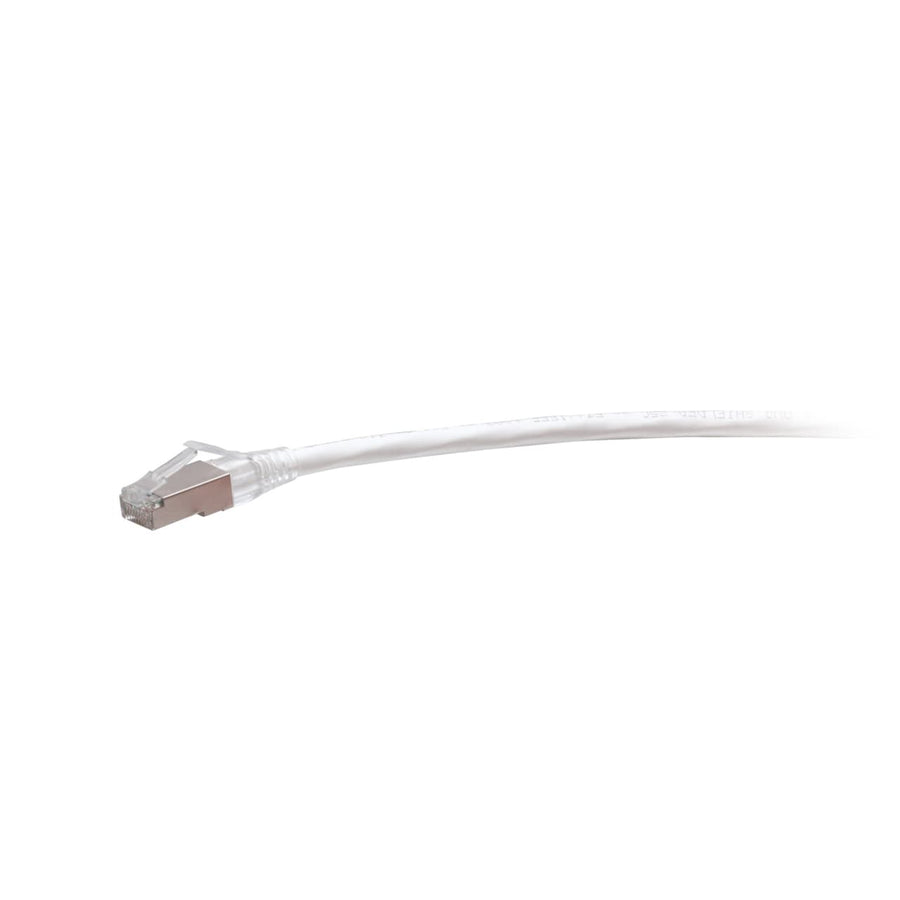

6in (0.15m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - White
6in White Cat6a shielded STP patch cable, TAA-compliant and snagless design for 10GBase-T networking
The C2G43959 is a 6in (0.5 ft) TAA-compliant Cat6a Snagless Shielded (STP) Network Cable in white. This passive patch cable is engineered for 10GBase-T ports and high-speed equipment, including network adapters, hubs, switches, routers, and patch panels. To protect high-speed 10 Gigabit network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, the cable features an aluminum foil shield and utilizes a Shielded STP construction. The cable utilizes stranded copper conductors with a 26 AWG wire gauge and 50-micron gold-plated contacts to maintain signal integrity. Designed with a snagless RJ45 connector, the clips are protected from accidental breakage during high-frequency insertion cycles. This CMR-rated riser cable is constructed with a PVC jacket and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is TAA compliant, making it suitable for United States government projects and facilities. The cable operates within a temperature range of -4° - 167°F (-20° - 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439592 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43959 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat6a cable?
This cable is designed for 10GBase-T applications, supporting 10 Gigabit Ethernet connections for bandwidth-intensive networking.
What type of shielding does this cable use?
The C2G43959 uses Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to counter EMI and RFI.
What is the wiring scheme for this patch cable?
This cable is wired using the T568B scheme and features 26 AWG stranded copper conductors.
Will this cable work in a riser application?
Yes, this cable features a CMR-rated jacket, making it suitable for riser-rated applications.
