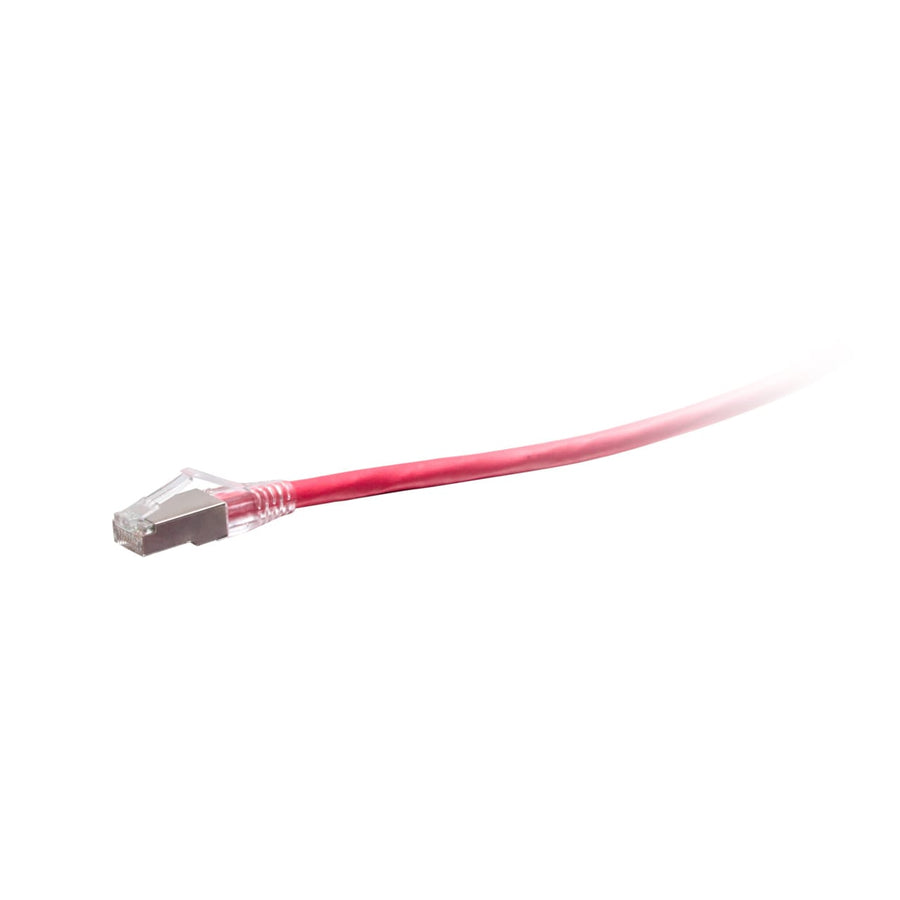

6in (0.15m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Red
Red TAA-compliant Cat6a STP patch cable, 0.5 ft length, with snagless RJ45 connectors
The C2G43875 is a 0.5 ft (0.2 m) TAA-compliant Cat6a snagless shielded patch cable finished in red. This STP (Shielded Twisted Pair) cable is engineered for high-speed 10GBase-T applications, providing robust protection against electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It is constructed with high-quality, made-in-the-USA stranded copper conductors and features an aluminum foil shield to maintain signal integrity in bandwidth-intensive environments. The snagless RJ45 male connectors include 50-micron gold-plated contacts and are designed to protect the clips from damage during high-frequency insertion cycles. This CMR-rated riser cable uses a PVC jacket and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, making it suitable for use with network adapters, hubs, switches, routers, and patch panels. This passive cable operates in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438755 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43875 TAA compliant?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this cable is designed for 10GBASE-T applications, including use with high-speed network adapters, switches, and routers.
What is the maximum operating temperature for this red cable?
The cable is rated for operation in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
What is the difference between this and the unshielded versions?
This is an STP (Shielded Twisted Pair) cable with an aluminum foil shield to counter EMI and RFI, unlike unshielded versions.
Does this cable include a warranty?
This product comes with a lifetime warranty from C2G.
