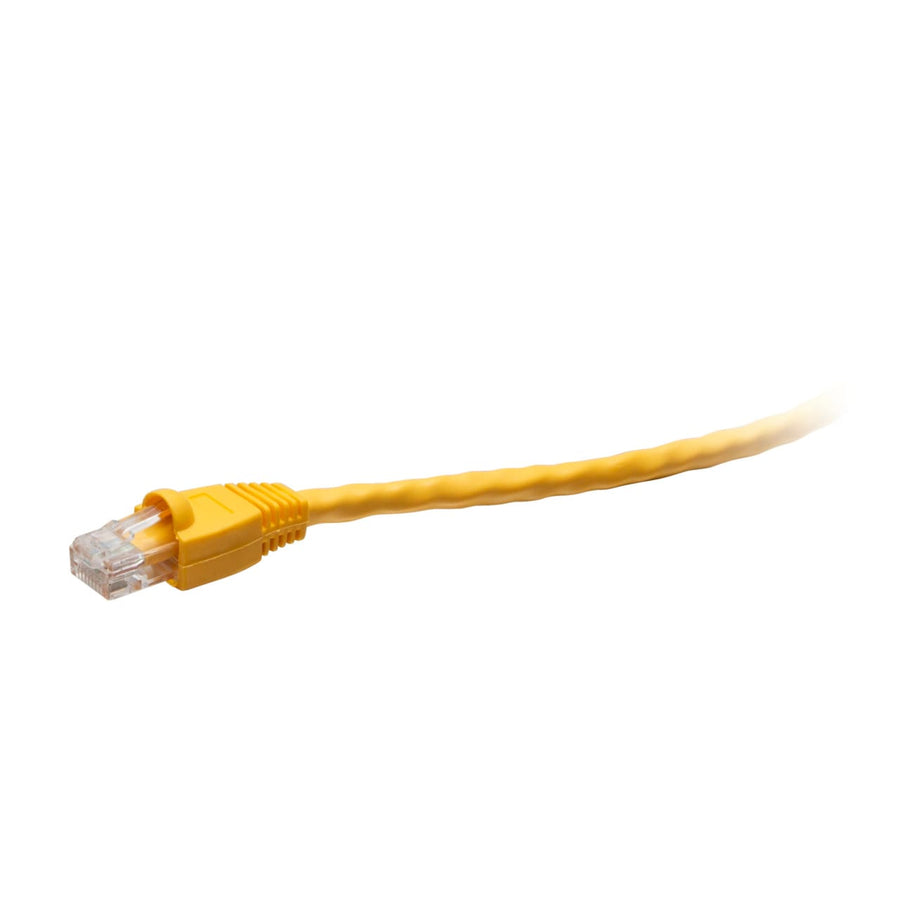

6in (0.15m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Yellow
6in (0.15m) yellow Cat6 UTP network cable, TAA-compliant, featuring snagless RJ-45 connectors and US-made stranded copper conductor
The C2G43506 is a 6in (0.15m) TAA-compliant Cat6 Unshielded Twisted Pair (UTP) network cable designed for high-performance connectivity in sensitive environments. This yellow patch cable is engineered for use with network adapters, hubs, switches, routers, and servers, supporting 1000BASE-T (1 Gigabit Ethernet) applications. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for a wide range of professional networking tasks. The cable is constructed with premium, made-in-the-USA copper stranded conductors and features a 24 AWG wire gauge. To ensure signal integrity and longevity, the RJ-45 male connectors are equipped with 50-micron gold-plated contacts. The molded, snagless boot design protects the clips from damage during high-frequency insertion cycles and provides added strain relief. Rated for CMR riser applications, this cable operates within a temperature range of -4°C to 75°C (-20°F to 167°F).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435068 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Does the C2G43506 support Gigabit Ethernet speeds?
Yes, the C2G43506 is TAA-compliant and meets or exceeds ANSI/TIA-568.2-D standards to support 1000BASE-T (1 Gigabit Ethernet) applications.
What is the benefit of the snagless design on this cable?
The molded snagless boot protects the RJ-45 clips from snapping off, which is particularly useful in applications involving frequent insertion and removal cycles.
Where can I use this CMR rated cable?
As a CMR rated cable, this is approved for riser applications. It is designed for use in network environments including switches, routers, and servers.
What materials are used in the C2G43506 construction?
This cable uses made-in-the-USA stranded copper conductors and features 50-micron gold-plated contacts on the RJ-45 male connectors.
What is the operating temperature range for this yellow Cat6 cable?
The C2G43506 is rated to operate in temperatures ranging from -4°C to 75°C (-20°F to 167°F).
