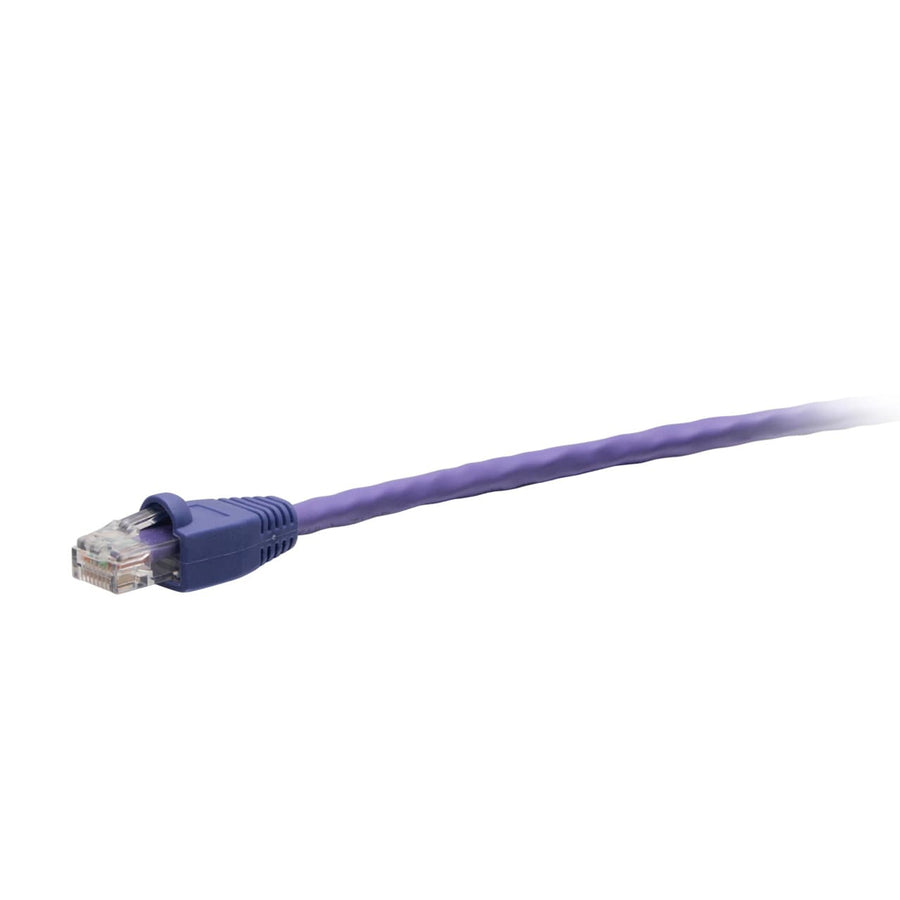

6in (0.15m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Purple
6in (0.15m) Purple Cat6 Snagless UTP Network Cable, TAA-Compliant, 1000BASE-T support
The C2G C2G43548 is a 6in (0.15m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable in purple. This passive, unshielded twisted pair (UTP) cable is constructed with high-quality, made in the USA copper cabling to ensure consistent and reliable performance. It is designed to support a wide variety of networking applications, including 1000BASE-T (1 Gigabit Ethernet) for hubs, switches, routers, servers, and network adapters. The cable features 24 AWG stranded copper conductors and 50-micron gold-plated contacts to improve signal integrity. This specific model is CMR rated for riser application and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The snagless RJ-45 male connectors include a molded boot to protect the clips from damage and provide additional strain relief during high-cycle insertion. This purple cable is TAA compliant, making it approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435488 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G C2G43548 TAA compliant?
Yes, this Cat6 cable is TAA compliant and meets requirements for United States government projects and facilities.
What is the maximum frequency and speed for this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
What type of jacket rating does this purple cable have?
This is a CMR rated riser cable with a PVC jacket, suitable for riser applications.
Will this cable work with my patch panel or enclosure?
This cable is compatible with various accessories, including the CG37199 24-Port Cat6 110-Type Patch Panel and several EN series enclosures.
What type of shielding does this network cable use?
This is an Unshielded Twisted Pair (UTP) cable featuring 24 AWG stranded copper conductors.
