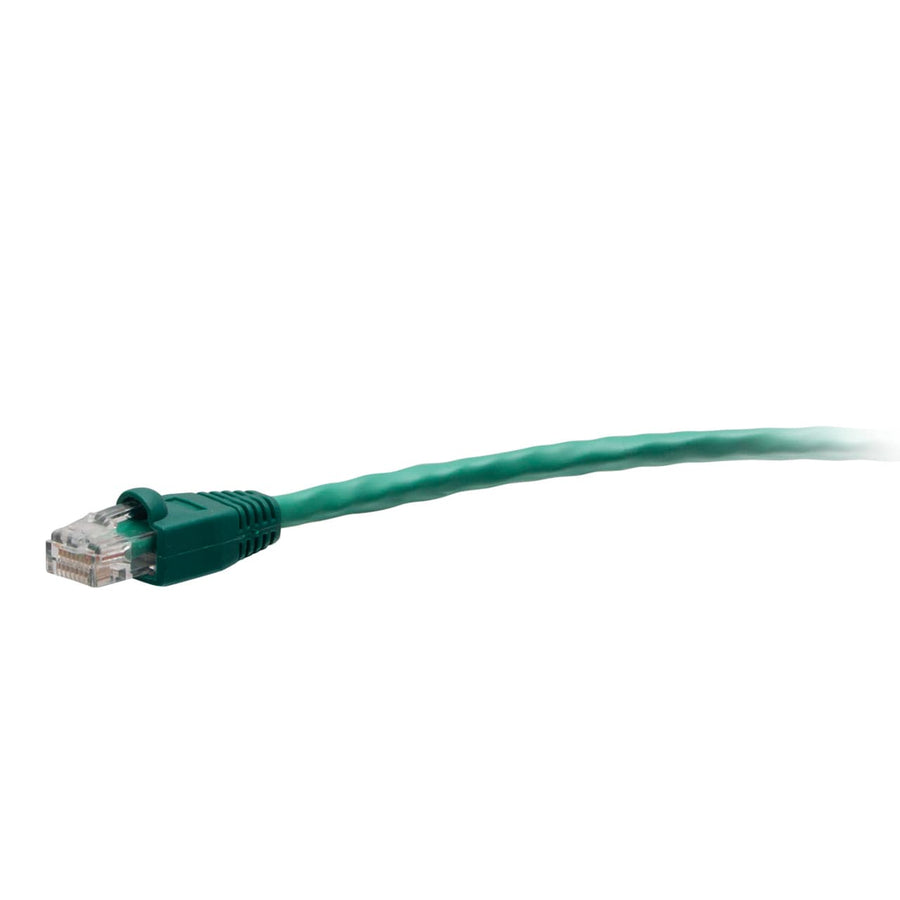

6in (0.15m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Green
6-inch Cat6 UTP network cable, TAA-compliant, green snagless RJ45 connectors, 24 AWG stranded copper
The C2G43485 is a 6-inch (0.2 m) TAA-compliant Cat6 Unshielded Twisted Pair (UTP) network cable in green, specifically designed for use in United States government projects and facilities. This passive cable is built with high-quality, made in the USA stranded copper conductors and features 24 AWG wire gauge for reliable performance in 1000BASE-T 1 Gigabit Ethernet applications. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting a maximum frequency of 600 MHz. The connectors feature 50-micron gold-plated contacts for improved signal integrity and a molded, snagless boot to protect the RJ45 clips from damage during high-insertion cycle applications. This CMR rated, riser-rated cable has a PVC jacket and a 0.22 in (5.6 mm) diameter, making it an efficient solution for short-range connections between switches, routers, and network adapters.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434856 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43485 TAA compliant?
Yes, this Cat6 cable is TAA compliant and meets requirements for United States government projects.
What is the maximum frequency supported by this cable?
This C2G network cable supports a maximum frequency of 600 MHz for high-performance connectivity.
Can this cable be used in riser applications?
Yes, this cable features a CMR rated riser jacket application for your installation needs.
Does the C2G43485 have gold-plated contacts?
The RJ45 connectors are equipped with 50-micron gold-plated contacts to help maintain signal integrity.
What is the wire gauge and shielding for this Cat6 cable?
This is an unshielded UTP cable constructed with 24 AWG stranded copper conductors.
