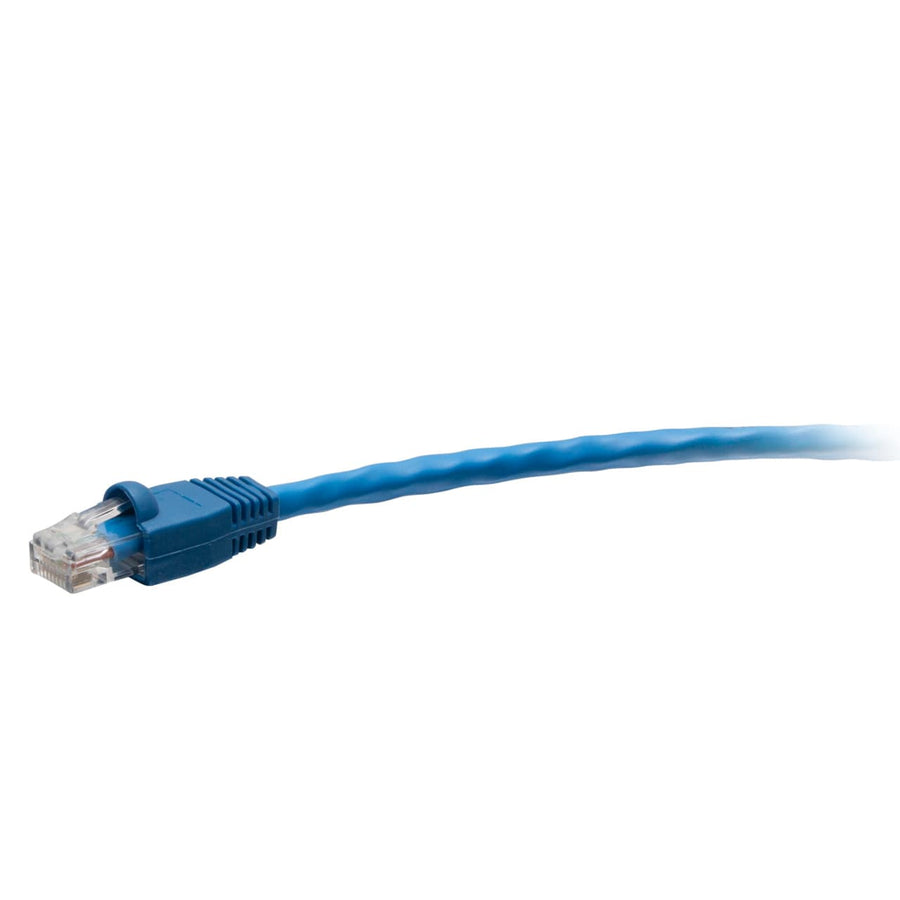

6in (0.15m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Blue
0.5 ft (0.2 m) TAA-compliant Cat6 UTP patch cable, blue color, with snagless RJ-45 connectors
The C2G43443 is a 0.5 ft (0.2 m) TAA-compliant Cat6 unshielded twisted pair (UTP) network cable designed for secure connectivity in United States government projects and facilities. This passive cable features a snagless RJ-45 male to RJ-45 male configuration, utilizing 50-micron gold-plated contacts to maintain signal integrity for 1000BASE-T (1 Gigabit Ethernet) applications. Built with high-quality, made-in-the-USA stranded copper conductors and 24 AWG wire, this cable supports a maximum frequency of 600 MHz. The blue PVC jacket is CMR rated for riser applications and includes a molded, snagless boot to protect the clips from snapping during high-frequency insertion cycles. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, ensuring reliable performance for network adapters, hubs, switches, routers, and servers in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434436 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43443 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for use in United States government projects and facilities.
What is the maximum frequency and speed support of this Cat6 cable?
This Cat6 cable is rated for a maximum frequency of 600 MHz and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What type of construction is used for the conductors in the C2G43443?
The cable uses 24 AWG stranded copper conductors with 50-micron gold-plated contacts for reliable performance.
Can this cable be used in riser applications?
Yes, this cable features a PVC jacket with a CMR rating, making it suitable for riser applications.
What is the operating temperature range for this blue Cat6 cable?
This cable is rated to operate within a temperature range of -4° to 167°F (-20° to 75°C).
