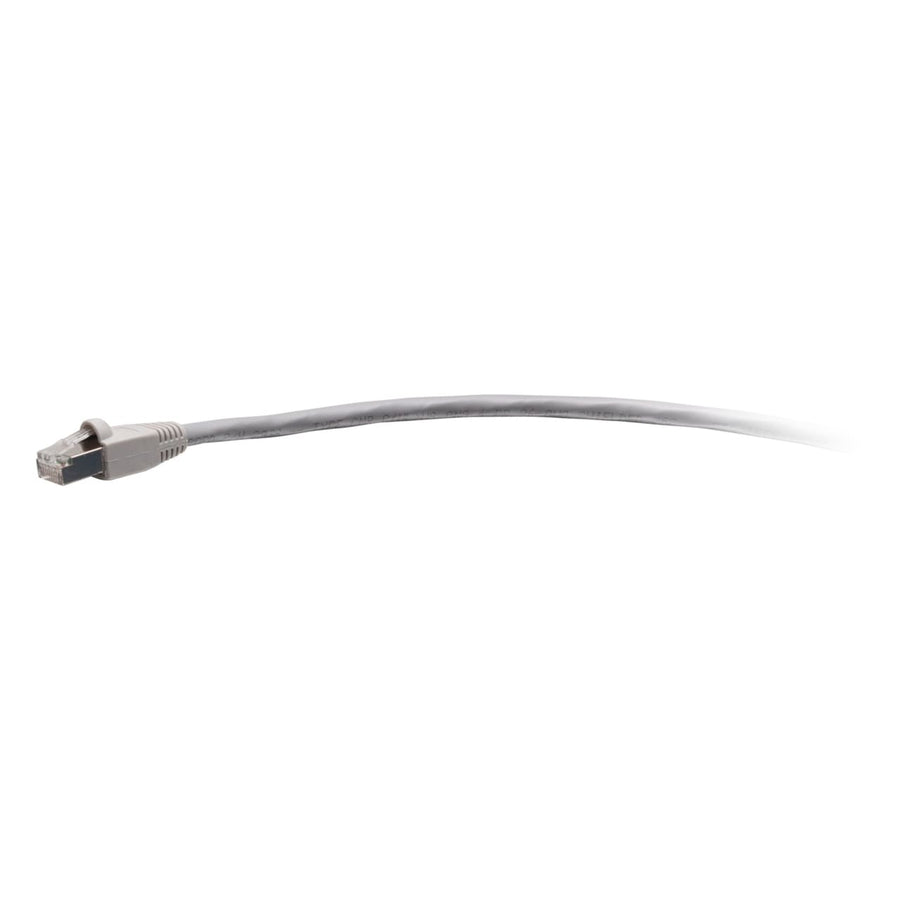

6in (0.15m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Gray
6in gray TAA-compliant Cat6 snagless shielded STP network cable for high-speed, noise-resistant connectivity
The C2G43707 is a 6in (0.15m) TAA-compliant Cat6 snagless shielded (STP) network cable in gray, engineered to meet the stringent requirements of United States government projects and facilities. This passive, stranded copper cable features a snagless RJ-45 male connector design to protect clips from damage during high-frequency insertion cycles. Built with a PVC jacket rated for CMR riser applications, the cable utilizes an aluminum foil shield to counter EMI, RFI, and alien crosstalk, ensuring reliable performance for 1000BASE-T (1 Gigabit Ethernet) applications. It features 50-micron gold-plated contacts to maintain signal integrity and follows T568B wiring schemes. This Cat6 cable is ideal for connecting network adapters, hubs, switches, routers, and servers in environments requiring high-speed, interference-resistant data transmission. The cable operates within a temperature range of -4° to 167°F (-20° to 75°C) and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437079 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43707 TAA compliant?
Yes, this F-Series Cat6 cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum operating temperature for this cable?
The operating temperature range for this C2G43707 cable is -4°F to 167°F (-20°C to 75°C).
Does this Cat6 cable provide shielding against interference?
Yes, it uses a shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to mitigate EMI, RFI, and alien crosstalk.
What wiring scheme does this cable use?
The C2G43707 uses the standard T568B wiring scheme and features 26 AWG stranded copper conductors.
What is the purpose of the snagless connector design?
The snagless RJ-45 male connectors are designed to protect the clips from being snapped off, making them suitable for applications with high insertion cycles.
