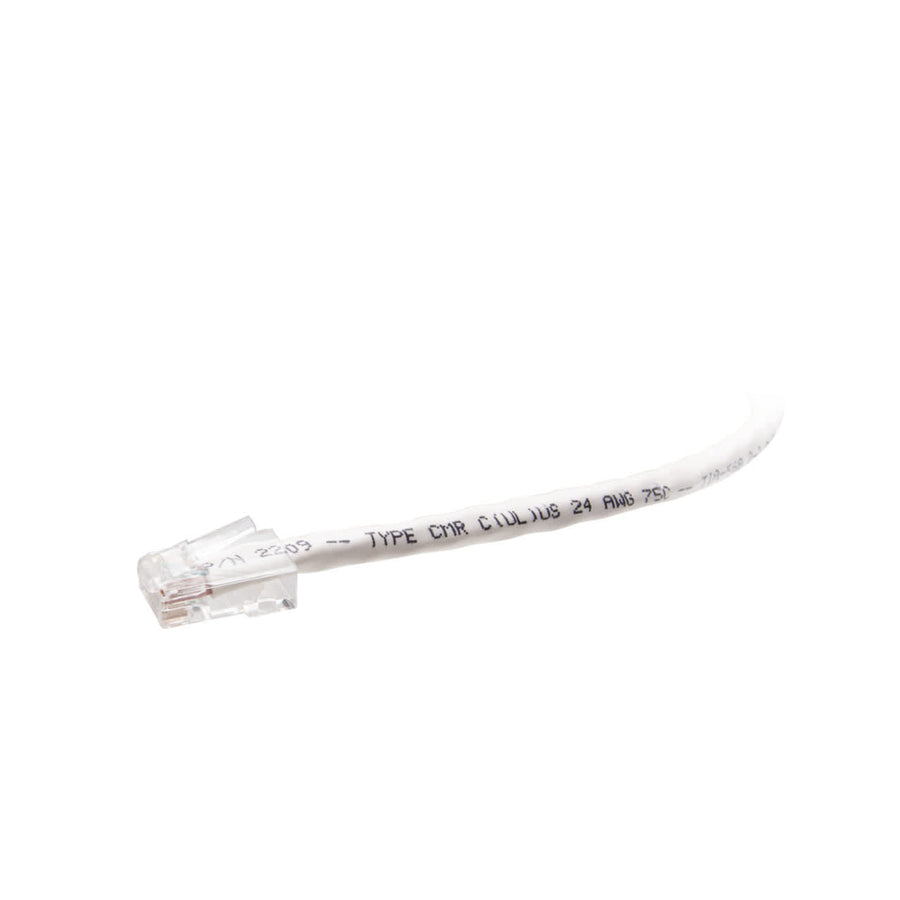

6in (0.15m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - White
White 6in (0.2m) TAA-compliant Cat6 UTP network cable with unshielded stranded copper conductors
The C2G43683 is a 0.5 ft (0.2 m) TAA-compliant F-Series Cat6 network cable designed for use in United States government projects and facilities. This non-booted, unshielded (UTP) cable features stranded copper conductors and is built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is suitable for 1000BASE-T 1 Gigabit Ethernet applications, connecting hardware such as network adapters, hubs, switches, routers, and servers. This cable utilizes 24 AWG wiring with a 50-micron gold-plated contact configuration on the RJ-45 male connectors to maintain signal integrity. The PVC jacket is CMR rated and riser rated for safe installation. Operating within a temperature range of -4°F to 167°F (-20°C to 75°C), this white cable offers a 600 MHz maximum frequency. This specific SKU is a 0.5 ft (0.2 m) variant; other lengths in this series are available up to 25ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436836 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43683 TAA compliant?
Yes, this cable is TAA compliant and meets the requirements for use in United States government projects and facilities.
What is the maximum frequency and speed support for this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) applications and features a 600 MHz maximum frequency.
What type of jacket is used on this C2G cable?
The cable features a CMR rated and riser rated PVC jacket, suitable for use in various installation environments.
Does this cable have gold-plated connectors?
Yes, the RJ-45 male connectors feature 50-micron gold-plated contacts to assist with signal integrity.
Can I use this for 1000BASE-T applications?
Yes, this Cat6 cable is designed to meet or exceed ANSI/TIA-568.2-D standards for 1000BASE-T support.
