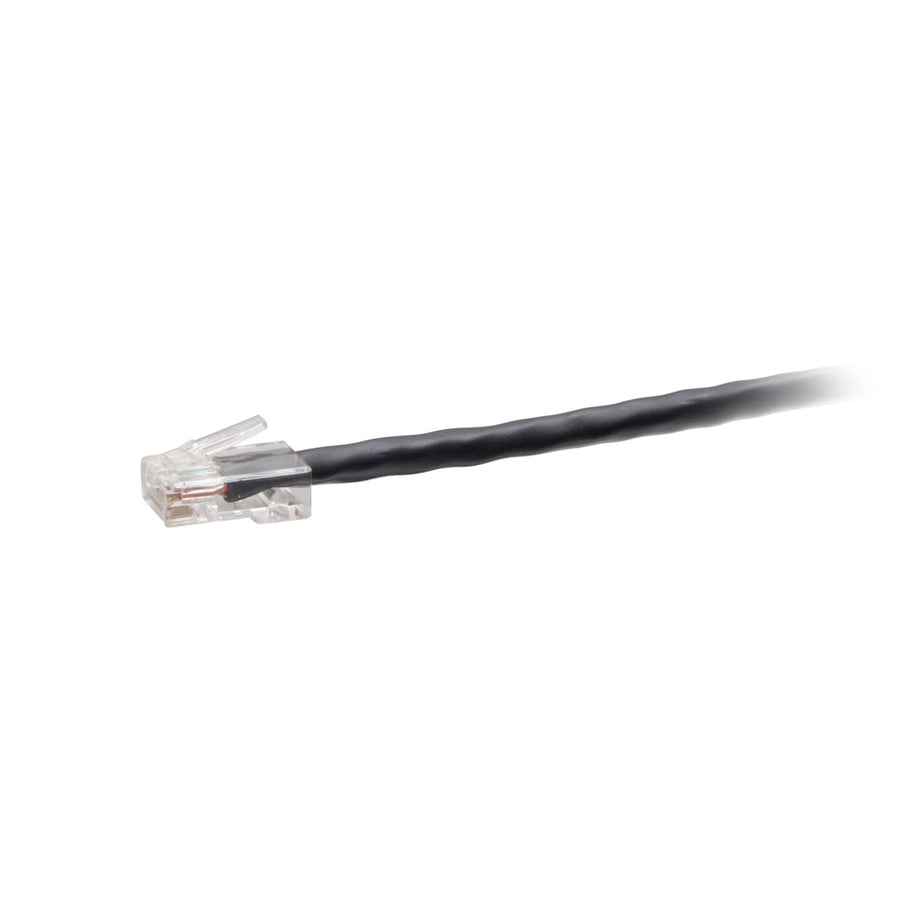

6in (0.15m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Black
0.5 ft (0.2 m) TAA-compliant Cat6 unshielded network cable, black PVC jacket, RJ-45 male connectors
The C2G43623 is a 0.5 ft (0.2 m) TAA-compliant Cat6 unshielded (UTP) network cable designed for high-performance connectivity in restricted environments. This passive cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, supporting 1000BASE-T 1 Gigabit Ethernet applications. It is constructed with high-quality, made in the USA copper stranded conductors that provide a 600 MHz maximum frequency for enhanced signal reliability. The cable features 50-micron gold-plated RJ-45 male contacts to improve signal integrity across hubs, switches, routers, and servers. This specific SKU is a non-booted, black-jacketed cable with a 0.22 in (5.6 mm) diameter and CMR rated riser application. It is specifically approved for use in United States government projects and facilities due to its TAA compliance. The PVC jacket is rated for a wide operating temperature range of -4°F to 167°F (-20°C to 75°C). This cable is part of the F-Series, which is available in various other lengths and colors for organized, color-coded network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436232 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43623 TAA compliant?
Yes, this cable is TAA compliant and is approved for use in United States government projects and facilities.
What is the maximum length available for this cable series?
While this specific SKU is 0.5 ft (0.2 m), the F-Series network cables are available in lengths up to 25ft.
What cable type and shielding does the C2G43623 have?
This is an unshielded (UTP) Cat6 cable with a non-booted, stranded copper conductor design.
What applications is this Cat6 cable suitable for?
It is designed for use with network adapters, hubs, switches, routers, and servers requiring 1000BASE-T support.
What is the operating temperature range for this cable?
The cable is rated to operate in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
