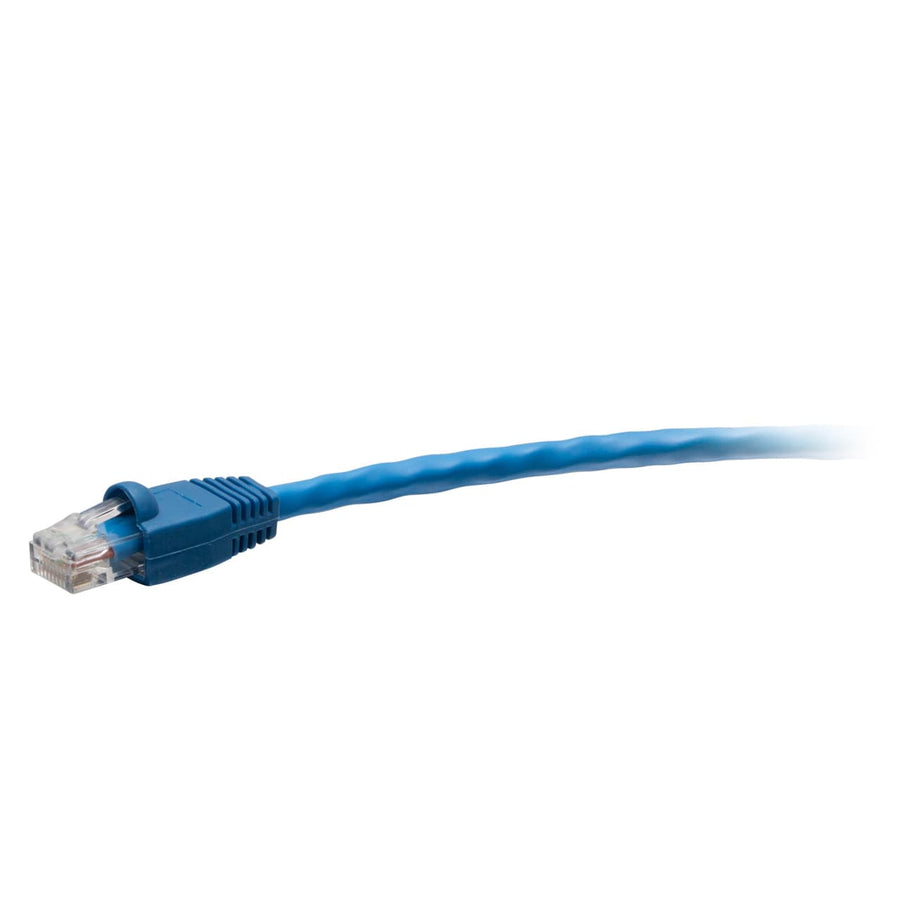

6in (0.15m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable - Blue
6in (0.15m) TAA-compliant Cat5e UTP network cable, blue finish, with snagless RJ-45 connectors for high insertion cycle environments
The C2G43407 is a 0.5 ft (0.2 m) TAA-compliant Cat5e Unshielded Twisted Pair (UTP) network cable designed for rapid connectivity in high-density environments. This blue snagless cable is built for use with network adapters, hubs, switches, routers, and servers. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting applications including 1000BASE-T (1 Gigabit Ethernet). The cable features 26 AWG stranded copper conductors and 50-micron gold-plated contacts to maintain signal integrity. For durability in installations with frequent changes, the molded snagless boot protects the RJ-45 clips from breaking and provides strain relief. This CMR-rated riser cable is constructed with a PVC jacket and is rated for operating temperatures between -4°C and 75°C (-20°F to 167°F). This TAA-compliant solution is approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434078 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
17 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP1705NAV1$69.99
Questions about this part
Is the C2G43407 TAA compliant?
Yes, this is a TAA-compliant F-Series cable approved for United States government projects and facilities.
What is the maximum frequency and speed of this Cat5e cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 350 MHz maximum frequency.
What type of jacket rating does this cable have?
This blue cable features a CMR rated riser jacket made of PVC material.
What is the connector type and shielding for the C2G43407?
It features two RJ-45 male connectors with an Unshielded Twisted Pair (UTP) design and snagless boots.
Does this cable support high insertion cycles?
Yes, the snagless RJ-45 connector design is specifically engineered to protect clips from snapping during frequent use.
