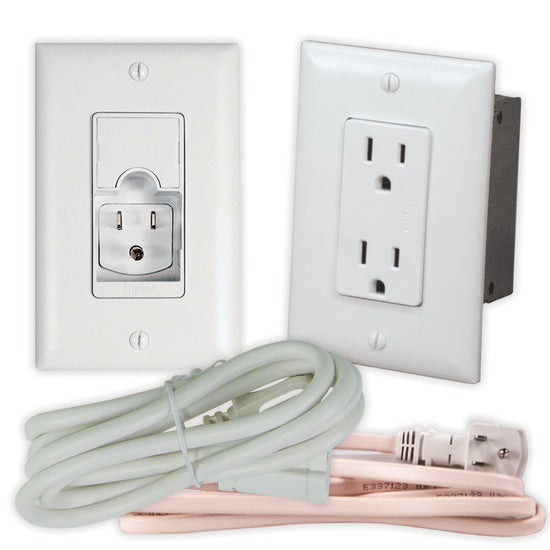

6ft Enclosure In-Wall Power Kit in White
6ft in-wall power kit in white, featuring a pre-wired 15A tamper-resistant dual outlet for Dual-Purpose Enclosures
The On-Q CPT7526WHR6 is a 6ft Enclosure In-Wall Power Kit in White designed to extend electrical power from an existing wall outlet to a Legrand Dual-Purpose Enclosure behind a mounted TV. This kit allows for the extension of power and AV cables inside the wall without the need to modify existing home electrical wiring. The assembly includes a 6ft in-wall rated power cable and a pre-wired 15A Tamper Resistant outlet that secures directly into the knockouts of the Dual-Purpose Enclosure. This dual outlet configuration provides power for multiple devices located behind a display, such as a streaming device, network switch, or cable box. The kit features a 14-gauge wire and a white matte finish to match standard wall plates. For installation, a drywall saw and the included hardware are required to complete the setup.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11" x 8" x 3.1"(279.4 x 203.2 x 78.8 mm) |
| Wire Gauge | 14 |
| Application | In-Wall |
| Color | White |
| Finish | Matte |
| Included | Wall Plate |
| Number of Receptacles | 2 |
| Receptacle Type | 5-15R |
| Wall Plate Type | Combination |
| Warranty | 1-Year Limited Warranty |
Resources
Questions about this part
Will the CPT7526WHR6 work with a Legrand Dual-Purpose Enclosure?
Yes, this kit is designed to secure into the knockouts of a Legrand Dual-Purpose Enclosure to extend power behind a display.
What tools are required to install this power kit?
A drywall saw is required for installation, along with the hardware and power input module provided with the kit.
How many devices can be powered with this kit?
The kit features two 5-15R receptacles, allowing you to power multiple devices like a network switch or streaming device.
What is the cable length and gauge for this kit?
The kit includes a 6ft in-wall rated power cable assembly with 14-gauge wire.
Which documentation is available for installation and submittals?
Installers can refer to the CPT7526 Instruction Manual for setup or the CPT7526 In-Wall Power Kit Sheet for technical details.
