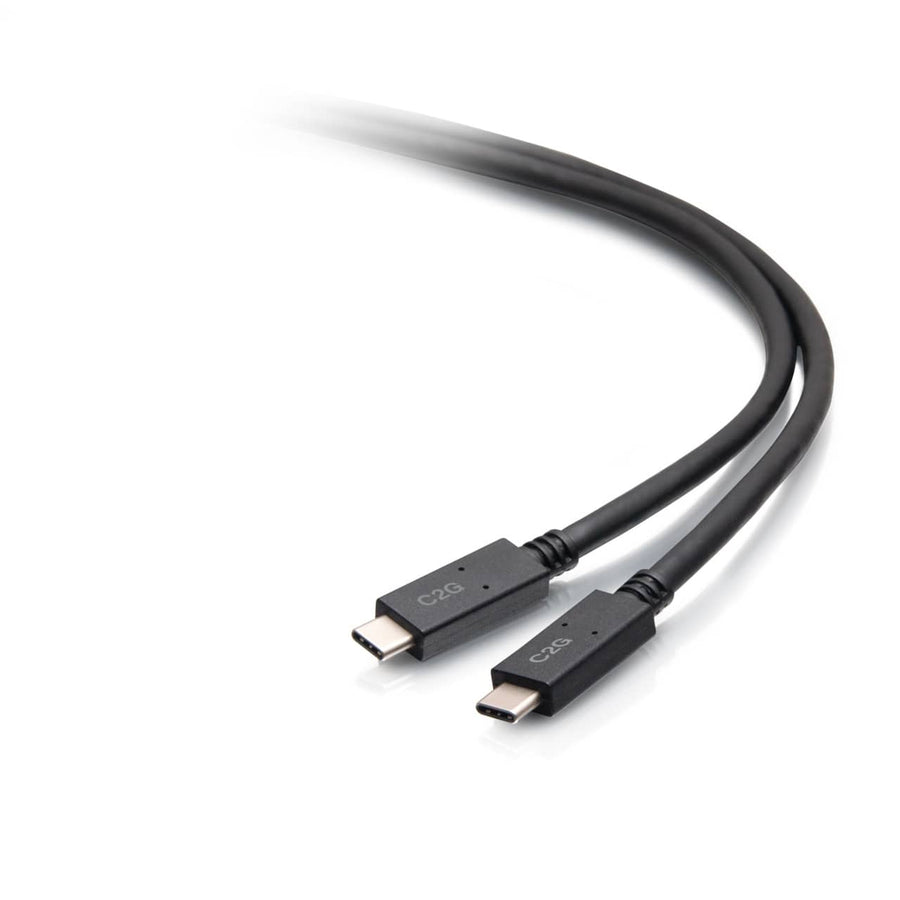

6ft (1.8m) USB-C® Male to USB-C Male Cable (20V 5A) - USB 3.2 Gen 1 (5Gbps)
6ft USB-C to USB-C cable supporting 5Gbps data transfer and 20V 5A charging for bidirectional signal transmission
The C2G C2G28882 is a 6 ft (1.8 m) USB-C Male to USB-C Male cable designed for high-speed data transfer and rapid charging. This USB 3.2 Gen 1 (USB 3.0) compliant cable facilitates bidirectional signal transmission at rates up to 5 Gbps, making it suitable for moving photos, music, or large data files between devices. It supports 20V 5A charging, ensuring compatibility with power-intensive laptops, smartphones, and tablets. The cable features a symmetrical USB-C connector design on both ends, allowing for easy orientation during installation. Constructed with a black PVC jacket with a VW-1 rating, this cable has a diameter of 0.15 in (3.8 mm) and a bend radius of 2.17 in (55 mm). It is engineered to operate in environments ranging from 32° to 122°F (0° to 50°C) with a maximum operating humidity of 85% RH. This cable is NDAA 889 compliant and carries CE and RoHS certifications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 5 Amp |
| Bend Radius | 2.17 in (55 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Humidity Max | 85% RH |
| Operating Humidity Min | 15% RH |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.23 lbs (0.1 kg) |
All other specifications 21
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 85% RH |
| Storage Humidity Min | 15% RH |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Voltage | 20 V |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) USB-C Male |
| Jacket Rating | VW-1 |
| Product Type | Cable |
| Special Features | USB-C Charging |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120288824 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Can this C2G C2G28882 cable support DisplayPort output?
Yes, this cable supports all 'Alt' mode features, including full DisplayPort and multi-streaming capabilities.
What is the maximum power delivery for the C2G28882?
This cable is rated for 20V 5A charging, supporting high-speed power delivery for laptops and mobile devices.
Is the C2G28882 cable suitable for high-speed data transfer?
Yes, it is a USB 3.2 Gen 1 cable that provides data transfer speeds up to 5 Gbps.
What is the operating temperature range for this cable?
The cable is designed to operate within a temperature range of 32° to 122°F (0° to 50°C).
Is there a different length available for this USB-C cable series?
Yes, this series also offers a 6.5 ft variant for different installation requirements.
