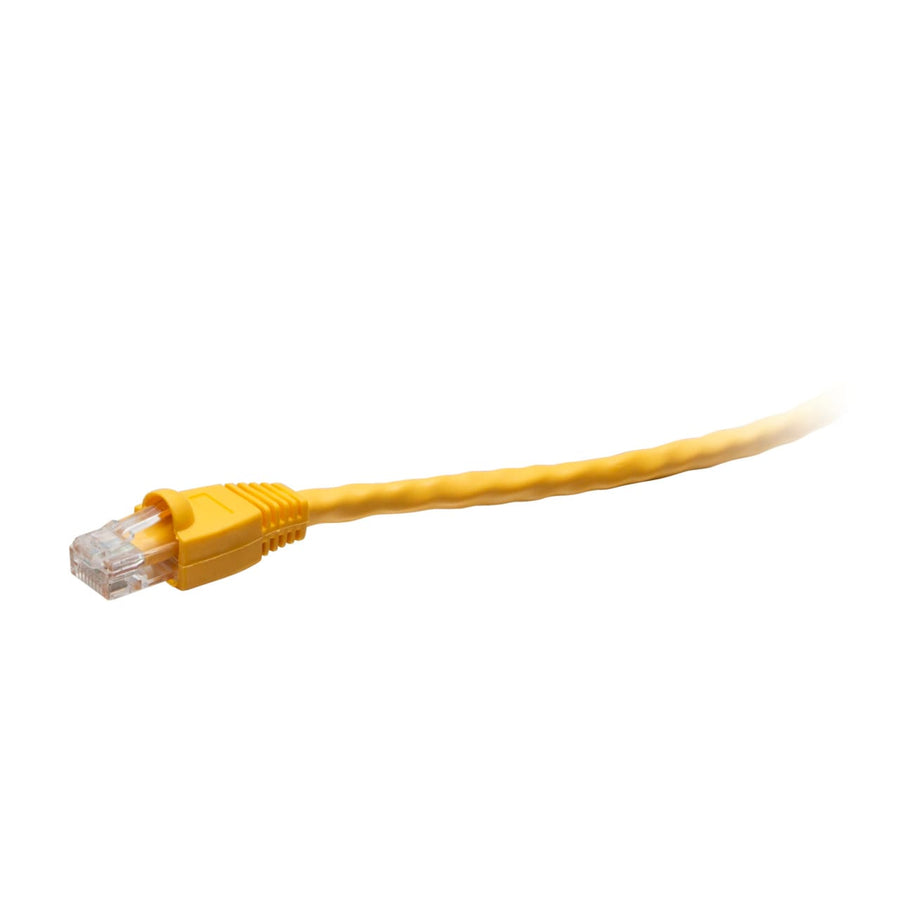

6ft (1.8m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Yellow
Yellow Cat6 UTP network cable, 6 ft (1.8m) length, TAA-compliant with snagless RJ45 connectors and CMR riser rating
The C2G43512 is a 6 ft (1.8 m) TAA-compliant Category 6 Unshielded Twisted Pair (UTP) network cable in yellow. Specifically designed to meet the stringent requirements of United States government projects and facilities, this passive cable is suitable for use with network adapters, hubs, switches, routers, and servers. It is constructed with high-quality, made in the USA copper stranded conductors and features 50-micron gold-plated contacts to maintain signal integrity. This cable supports 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The snagless RJ45 connector design includes a molded boot that protects the clips from damage during high-frequency insertion cycles while providing necessary strain relief. With a 0.22 in (5.6 mm) diameter and a CMR-rated PVC jacket, it is designed for riser applications within a wide operating temperature range of -4° - 167°F (-20° - 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435129 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43512 TAA compliant?
Yes, this C2G43512 cable meets TAA compliant requirements for use in United States government projects and facilities.
What is the maximum frequency and performance of this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency to support 1000BASE-T (1 Gigabit Ethernet) applications.
Can I use this cable for in-wall riser installations?
Yes, this cable features a PVC jacket with a CMR rating, making it suitable for riser applications.
What are the connector types on the C2G43512?
The cable is equipped with two RJ-45 male connectors featuring a snagless boot for added strain relief and clip protection.
What is the warranty for this C2G network cable?
This product is backed by a lifetime warranty from the manufacturer.
