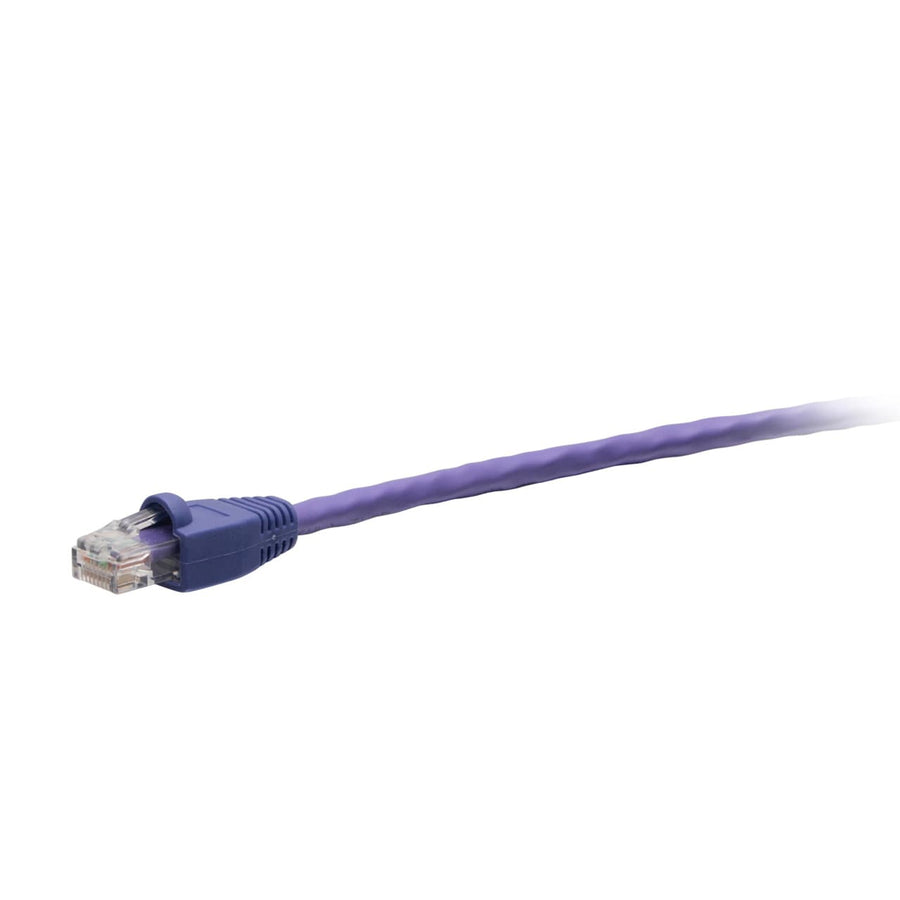

6ft (1.8m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Purple
6ft TAA-Compliant Cat6 Unshielded UTP cable in Purple with snagless RJ45 connectors and CMR rated riser jacket
The C2G43554 is a 6 ft (1.8 m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable in Purple. Designed to meet stringent TAA requirements, this cable is approved for use in United States government projects and facilities. It features high-quality, made in the USA copper conductors with a stranded configuration to ensure consistent and reliable performance for network adapters, hubs, switches, routers, and servers. This passive cable supports 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The 0.22 in (5.6 mm) diameter cable is protected by a molded, snagless boot that provides extra strain relief and prevents the RJ45 clips from snapping during installation or high-cycle use. For signal integrity, the connectors feature 50-micron gold-plated contacts. This CMR rated riser cable uses a PVC jacket and is suitable for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435549 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43554 TAA compliant?
Yes, this F-Series Cat6 cable is TAA-compliant, making it suitable for use in United States government projects and facilities.
What is the maximum performance for this Cat6 cable?
This cable is designed for 1000BASE-T (1 Gigabit Ethernet) applications and supports a 600 MHz maximum frequency.
Can I use the C2G43554 in riser applications?
Yes, this cable features a CMR rated jacket, which is suitable for riser applications.
What is the difference between the snagless design and standard Cat6 cables?
The snagless boot provides extra strain relief and prevents the RJ45 connector clips from being snapped off during installation.
What color is the C2G43554 cable?
This specific SKU is Purple, which can be used to color-code network installations.
