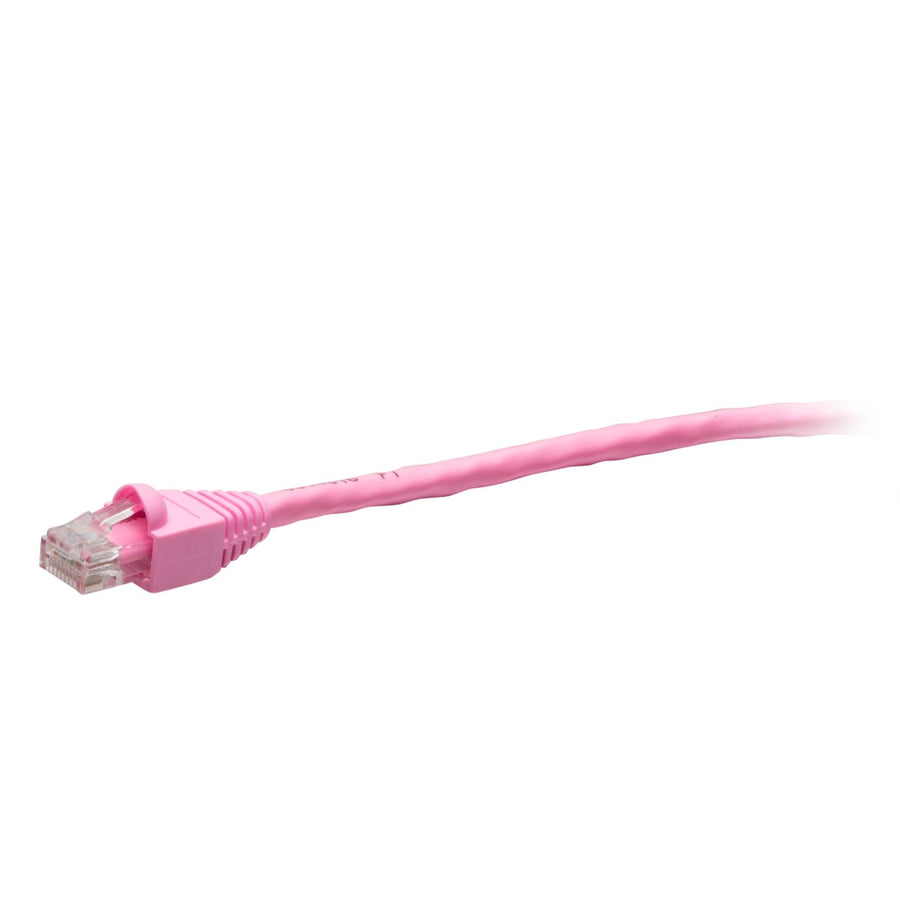

6ft (1.8m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
Pink 6ft Cat6 UTP network cable, TAA-compliant with snagless RJ45 connectors and CMR riser-rated jacket
The C2G43596 is a 6 ft (1.8 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable finished in pink. Built for professional deployments, this passive cable is constructed with high-quality, made in the USA copper cabling to ensure consistent and reliable performance. It is designed to meet or exceed all ANSI/TIA-568.2-D Category 6 industry standards, supporting applications such as 1000BASE-T (1 Gigabit Ethernet). Each cable features 50-micron gold-plated contacts to improve signal integrity and a snagless RJ45 connector design that protects the clips from breaking during high-frequency insertion cycles. This CMR-rated riser cable is ideal for use in network adapters, hubs, switches, routers, and servers. The pink jacket, made of PVC, allows for easy color-coding within complex network environments. This cable operates within a temperature range of -4° - 167°F (-20° - 75°C) and utilizes a T568B wiring scheme. The 24 AWG stranded copper conductors provide an enhanced 600 MHz maximum frequency.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435969 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43596 TAA compliant?
Yes, this C2G43596 cable is TAA compliant, making it approved for use in United States government projects and facilities.
Can I use this cable for 1 Gigabit Ethernet?
Yes, this Cat6 cable meets ANSI/TIA-568.2-D standards and is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
What is the difference between this and the standard Cat6 cables?
This series uses high-quality, made in the USA copper cabling that offers an enhanced 600 MHz maximum frequency compared to standard Cat6 cables.
What does the snagless design do?
The molded snagless boot protects the RJ45 clips from being snapped off, which is beneficial for applications with high insertion cycles.
What is the jacket rating for this cable?
This is a CMR rated riser cable with a PVC jacket, suitable for in-wall installation in plenum-free environments.
