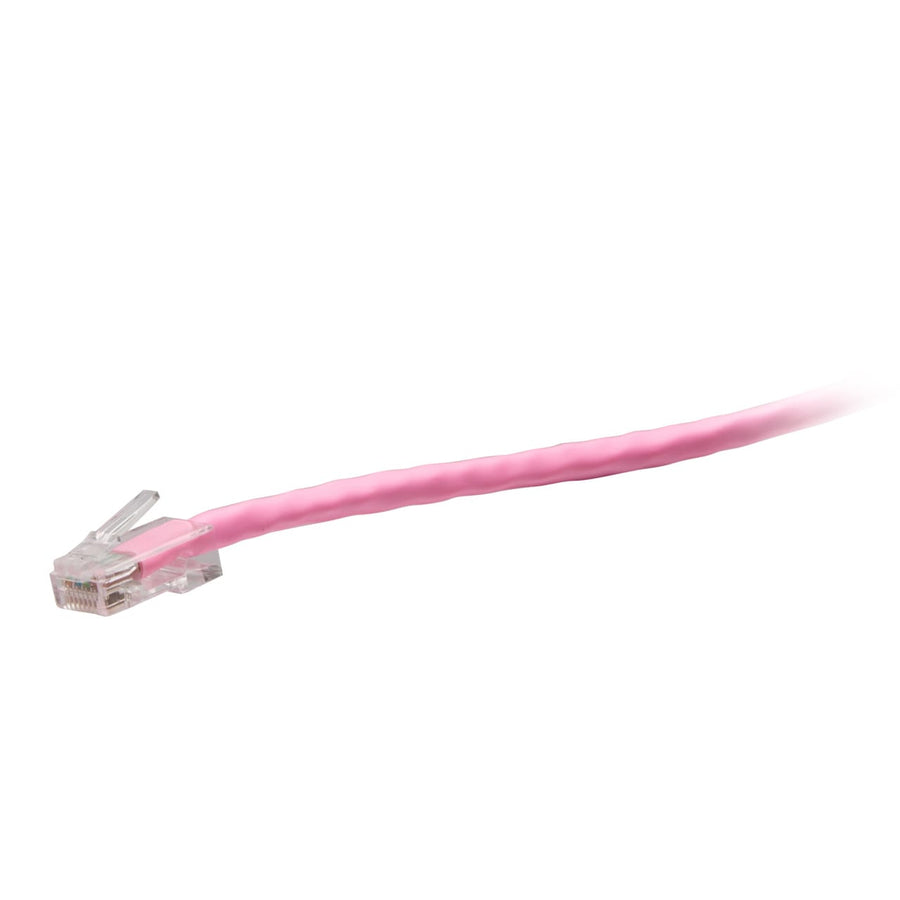

6ft (1.8m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Pink
Pink 6ft Cat6 unshielded UTP network cable, TAA-compliant, with RJ-45 male connectors
The C2G43701 is a 6ft (1.8m) TAA-Compliant F-Series Cat6 non-booted unshielded (UTP) network cable in pink. This cable is specifically designed for use in United States government projects and facilities that require TAA compliance. It is suitable for connecting network adapters, hubs, switches, routers, and servers. Each cable features 24 AWG stranded copper conductors and 50-micron gold-plated contacts to help maintain signal integrity. The construction utilizes a PVC jacket with a CMR (Riser) rating, making it appropriate for vertical cabling in residential or commercial buildings. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting applications requiring 1000BASE-T (1 Gigabit Ethernet) performance with a maximum frequency of 600 MHz. This specific pink color variant allows for easy color-coding within complex network installations. The cable utilizes a T568B wiring scheme and is designed for passive connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437017 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43701 TAA compliant?
Yes, this cable is TAA compliant, making it suitable for United States government projects and facilities.
What is the maximum frequency supported by this Cat6 cable?
The C2G43701 is designed with an enhanced 600 MHz maximum frequency to support high-performance 1000BASE-T Gigabit Ethernet applications.
What type of installation rating does this cable have?
This pink Cat6 cable features a CMR (Riser) jacket rating, which is intended for use in vertical riser applications.
What is the wiring scheme used for this network cable?
This cable is wired using the T568B scheme and features 24 AWG stranded copper conductors with 50-micron gold-plated contacts.
What accessories are compatible with this C2G cable?
This cable can be used in conjunction with various enclosure systems, such as the EN1400 14-inch Enclosure or the CG37199 24-Port Cat6 110-Type Patch Panel.
