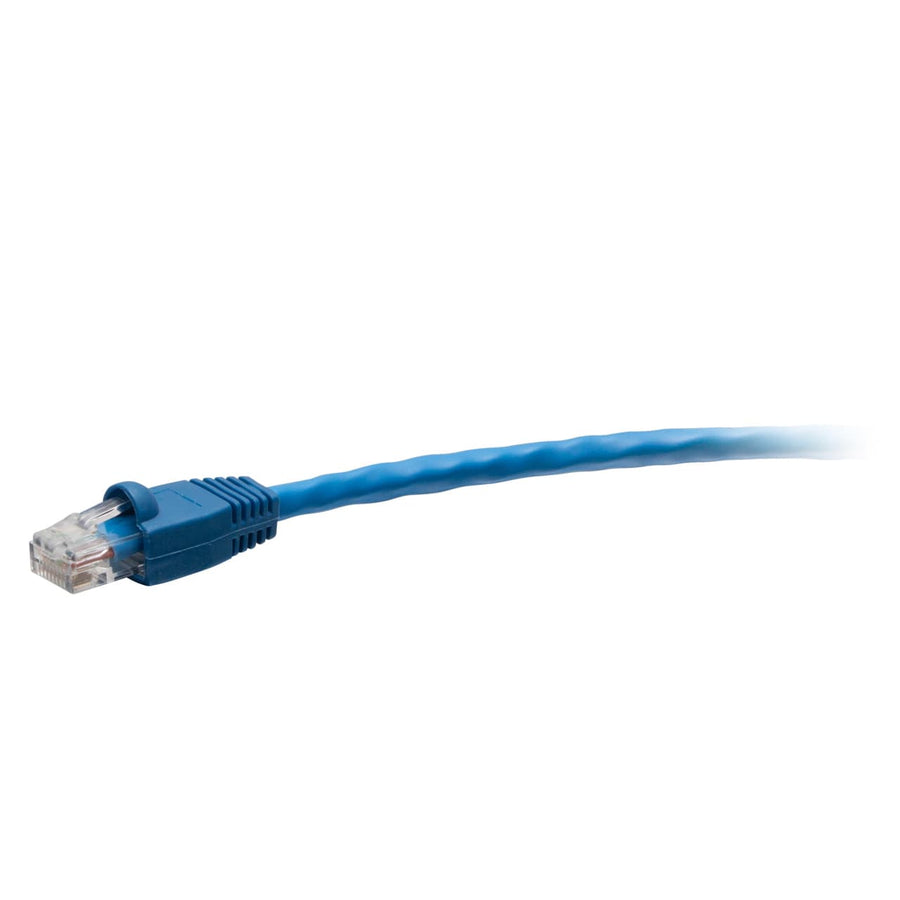

6ft (1.8m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable - Blue
6ft Blue Cat5e snagless UTP network cable, TAA-compliant, made in the USA with 24 AWG copper conductors
The C2G43413 is a 6ft (1.8m) TAA-compliant Cat5e snagless unshielded (UTP) network cable in Blue. This passive cable is built for high-performance connectivity in professional environments, specifically meeting the stringent requirements for United States government projects and facilities. It is constructed using high-quality, made-in-the-USA raw copper cabling, featuring 24 AWG stranded conductors that support an enhanced maximum frequency of 350 MHz for improved performance over standard Cat5e solutions. Designed for reliability in high-traffic environments, the molded snagless boots protect the RJ-45 clips from snapping during repeated insertion cycles, providing essential strain relief. The cable features 50-micron gold-plated contacts to maintain signal integrity and is rated CMR for riser applications. This cable supports 1000BASE-T (1 Gigabit Ethernet) applications and adheres to ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is suitable for connecting network adapters, hubs, switches, routers, and servers in diverse infrastructure setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434139 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is this Cat5e cable suitable for government projects?
Yes, the C2G43413 is TAA-compliant, making it approved for use in United States government facilities and projects.
What is the maximum frequency for this Cat5e cable?
This cable features an enhanced 350 MHz maximum frequency, providing higher performance than standard Cat5e cables.
How does the snagless design benefit the installer?
The molded snagless boot protects the RJ-45 clips from being snapped off, which is particularly useful in applications requiring high insertion cycles.
What standards does this cable meet?
The C2G43413 meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards for Category 5e cabling.
What is the wire gauge and conductor material?
This cable uses 24 AWG stranded copper conductors for reliable and consistent network performance.
