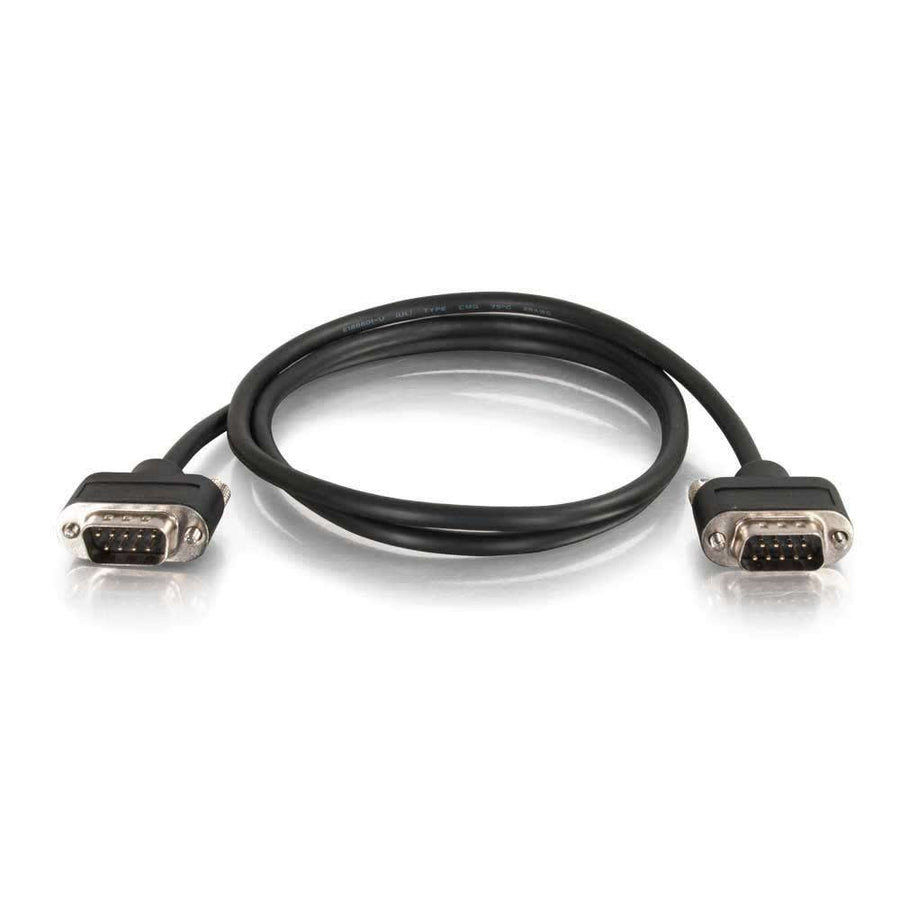

6ft (1.8m) Serial RS232 DB9 Null Modem Cable with Low Profile Connectors M/M - In-Wall CMG-Rated
6ft RS232 DB9 Null Modem Cable with low-profile connectors, CMG and FT4 rated for in-wall use
The C2G CG52166 is a 6ft (1.8 m) Serial RS232 DB9 Null Modem Cable specifically designed for audio/video installations in commercial and educational environments. This cable features low-profile connectors with a total depth of 1.25 in, which helps conserve space within gang boxes. The rounded shape of these connectors is engineered to fit into mounts with a 1.25 in. I.D. to ensure the cable can be easily hidden from view. Because the transmit and receive signals are crossed, this null modem cable is ready for immediate RS-232/Serial communication. This 28 AWG cable is fully shielded to prevent EMI/RFI interference and features a fully molded design for reliable strain relief. The DB9 Male to DB9 Male connectors include thumbscrews for secure, quick connections. This CMG and FT4 rated cable is suitable for use when these specific ratings are required for in-wall applications.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 6 ft (1.8 m) |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Type | ModemSerial |
| Color | Black |
| Connector 1 | (1) DB9 Male |
| Connector 2 | (1) DB9 Male |
| Jacket Application | In-Wall Rated |
All other specifications 7
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120521662 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
3ft (0.9m) Serial RS232 DB9 Null Modem Cable with Low Profile Connectors F/F - In-Wall CMG-Rated
CG52174$18.99
15ft (4.6m) Serial RS232 DB9 Cable with Low Profile Connectors M/F - In-Wall CMG-Rated
CG52160$26.99
Questions about this part
Is the CG52166 rated for in-wall installation?
Yes, this cable is CMG and FT4 (Canada) rated for general purpose in-wall use in commercial and educational settings.
Will this cable fit in tight spaces or small mounts?
The low-profile connectors have a 1.25 in. total depth and a rounded shape designed to accommodate 1.25 in. I.D. mounts.
What is the difference between this and the CG52160?
The CG52166 is a 6ft (1.8m) DB9 Male to DB9 Male Null Modem cable, whereas the CG52160 is a 15ft (4.6m) DB9 Male to Female cable.
Does this cable require additional hardware for connection?
The connectors feature integrated thumbscrews to provide secure, quick connections without additional tools.
What is the signal configuration of this Null Modem cable?
This cable has crossed transmit and receive signals to ensure proper data transmission for serial communication.
