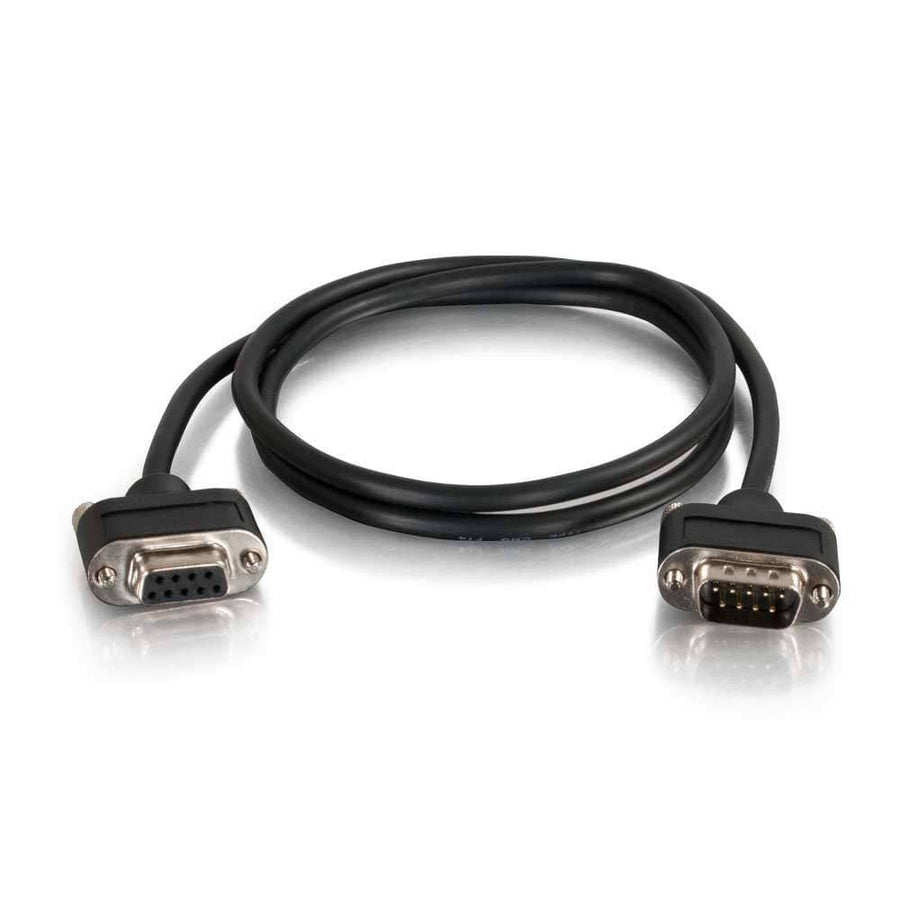

6ft (1.8m) Serial RS232 DB9 Null Modem Cable with Low Profile Connectors M/F - In-Wall CMG-Rated
6ft RS232 DB9 Null Modem cable with low profile M/F connectors, CMG and FT4 rated for in-wall installation
The C2G CG52184 is a 6 ft (1.8 m) Serial RS232 DB9 Null Modem cable designed specifically for audio/video installations in commercial and educational environments. This cable features low profile connectors with a 1.25 in (31.75 mm) total depth, which helps save space within a gang box. The rounded connector design is engineered to fit 1.25 in. I.D. mounts, allowing the cable to be easily hidden from view. For installation efficiency, the cable includes a 6 in breakout for mounting in electrical boxes and a 20 in breakout for the display or projector end. This 28 AWG cable is CMG and FT4 rated, making it suitable for use as an in-wall rated solution in controlled environments. The M/F configuration provides a direct serial connection between devices via DB9 male and female interfaces.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 6 ft (1.8 m) |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Type | ModemSerial |
| Color | Black |
| Connector 1 | (1) DB9 Male |
| Connector 2 | (1) DB9 Female |
| Jacket Application | In-Wall Rated |
All other specifications 7
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120521846 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G CG52184 rated for in-wall use?
Yes, this cable is CMG and FT4 rated, making it suitable for in-wall installation in many commercial and educational settings.
Will these connectors fit in tight mounting spaces?
The low profile connectors have a 1.25 in. total depth and a rounded shape designed to accommodate 1.25 in. I.D. mounts.
What is the purpose of the cable breakouts?
The cable features a 6 in breakout for electrical box mounting and a 20 in breakout for the projector or display end.
What is the pinout configuration for this RS232 cable?
This is a Null Modem cable using DB9 male and female connectors; note that Pin 9 is not loaded.
Does this cable support TAA compliance?
No, this specific SKU is not TAA compliant.
