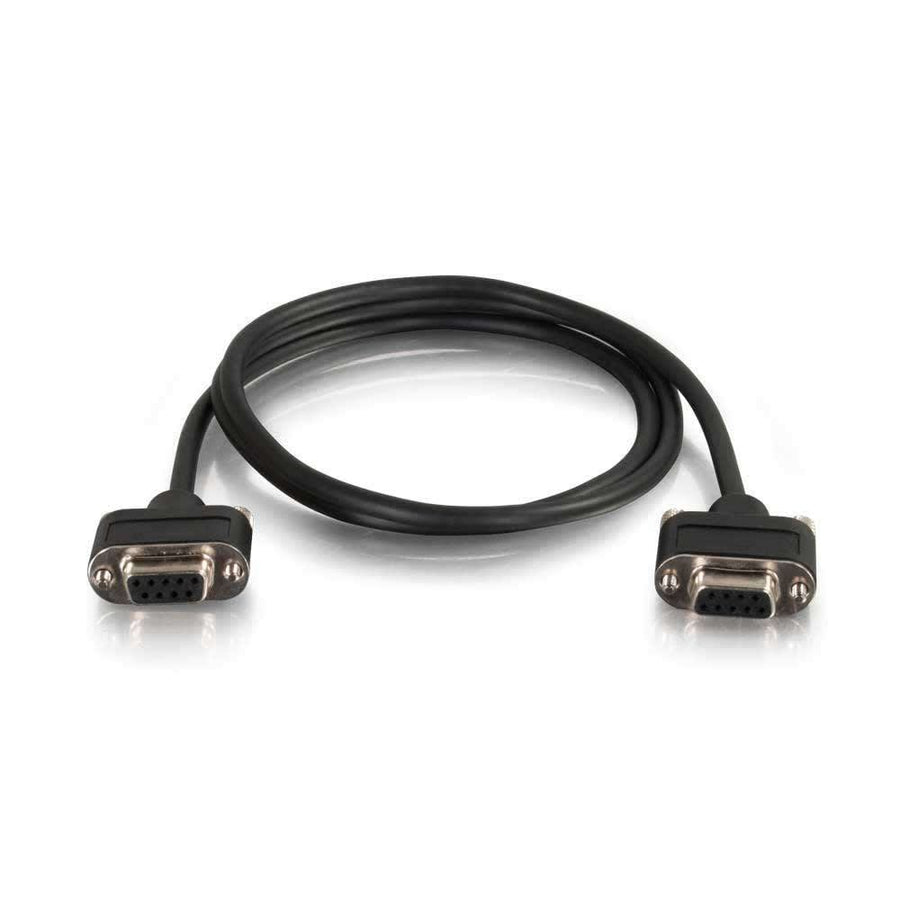

6ft (1.8m) Serial RS232 DB9 Null Modem Cable with Low Profile Connectors F/F - In-Wall CMG-Rated
6ft RS232 DB9 Null Modem Cable with low-profile connectors and CMG-rated jacket for in-wall use
The CG52175 is a 6 ft (1.8 m) Serial RS232 DB9 Null Modem Cable engineered specifically for audio/video installations in commercial and educational environments. This cable features low-profile connectors with a 1.25 in. length, providing a total depth of 1.41 in. to save critical space within a gang box. Because the connectors are rounded, they are compatible with 1.25 in. I.D. mounts. For specialized infrastructure projects, this cable is CMG and FT4 rated for in-wall applications, meeting NEC requirements for communications cables intended for general-purpose in-wall use. The cable construction utilizes 28 AWG wire and a PVC jacket. It is designed to be used as a substitute when specific ratings such as CL2, CL2X, CL3, CL3X, CMX, CM, or CL3 are required. The null modem wiring scheme facilitates direct serial communication between two DTE devices.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 6 ft (1.8 m) |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Type | Null ModemSerial |
| Color | Black |
| Connector 1 | (1) DB9 Female |
| Connector 2 | (1) DB9 Female |
| Jacket Application | In-Wall Rated |
All other specifications 7
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120521754 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the CG52175 rated for in-wall use?
Yes, this cable features a CMG and FT4 rated jacket, making it suitable for in-wall installations in accordance with NEC requirements for general-purpose communications cables.
Will these connectors fit in shallow junction boxes?
The low-profile connectors have a total depth of 1.41 in. (35.82 mm) and are designed to save space within the gang box during installation.
Can I use this cable if the spec requires CL2 or CL3 rating?
Yes, this 28 AWG CMG-rated cable can be used as a substitute for cables requiring CL2, CL2X, CL3, CL3X, CMX, CM, or CL3X ratings.
What is the connector configuration for the CG52175?
This is a null modem cable featuring (1) DB9 Female connector on each end, utilizing a null modem wiring scheme.
What other lengths are available in this series?
This series is available in multiple lengths, including 3 ft, 6 ft, 25 ft, and 35 ft options.
